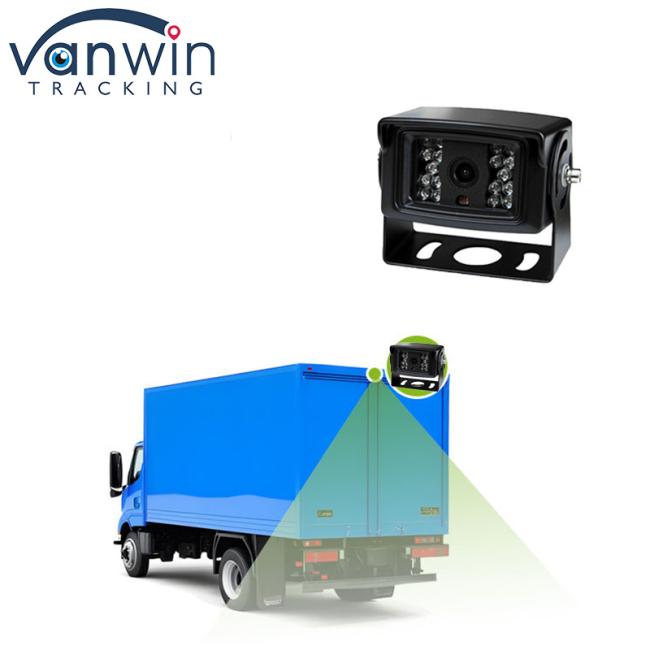

Outdoor Waterproof Car Camera IP68 AHD H.265 Truck Bus IPC Camera
Outdoor Waterproof Car Camera IP68 AHD H.265 Truck Bus IPC Camera
The advantages of an IP68 waterproof car camera
Water Resistance: IP68 rating ensures the camera is completely protected against dust and can withstand immersion in water, making it ideal for various weather conditions.
Enhanced Visibility: Many IP68 cameras come with features like night vision or wide-angle lenses, providing clear images in low-light conditions or during adverse weather.
Versatility: Suitable for different applications, including off-road vehicles, trucks, and marine use, where exposure to water and dirt is common.
Improved Safety: By providing clear video footage in challenging conditions, these cameras enhance the safety of driving and parking.
Easy Installation: Most IP68 cameras are designed for simple installation, making it convenient for users to set them up without extensive modifications.
| VW-386IPC | |
| Image Sensor | 1/3 CMOS H62 1.0MPW |
| Image System | PAL/NTSC |
| Resolution | 1280 (H)×800(V) |
| Min.illumination | 0.1Lux full color |
| Electronic Shutter | 1/25s～1/100,000s |
| Video Standard | AHD |
| Frame Rate | 1280×800@25 fps；1280×800@30 fps； |
| Lens | 2.8/3.6mm |
| Video Out | 1CH BNC AHD output,Support TVI/CVI/CVBS Mode |
| WDR | auto |
| SNR | >45db |
| White Balance | AWB |
| DR | 76db |
| Advanced Function | 2D_DNR |
| Working Environment | -10℃～+60℃,Humidity 95% |
| Power supply | DC 12V +/-15%, |

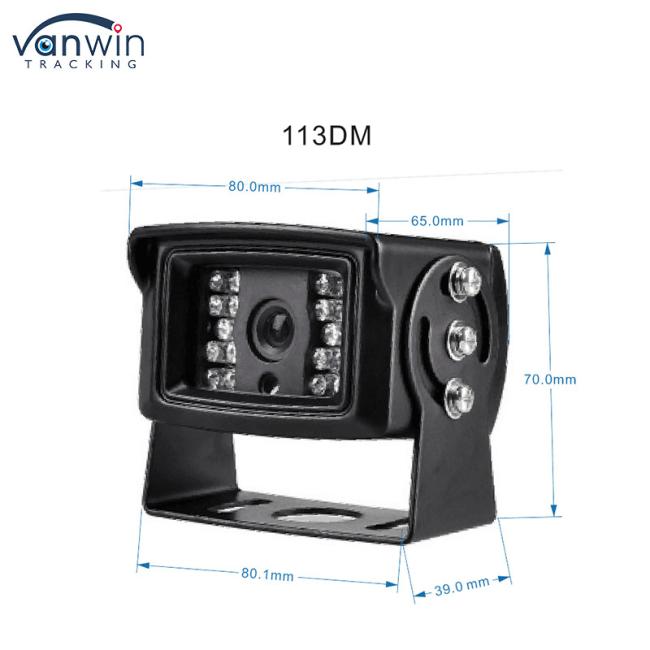

| Dimensions(mm) | 38*38,32*32 |
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
