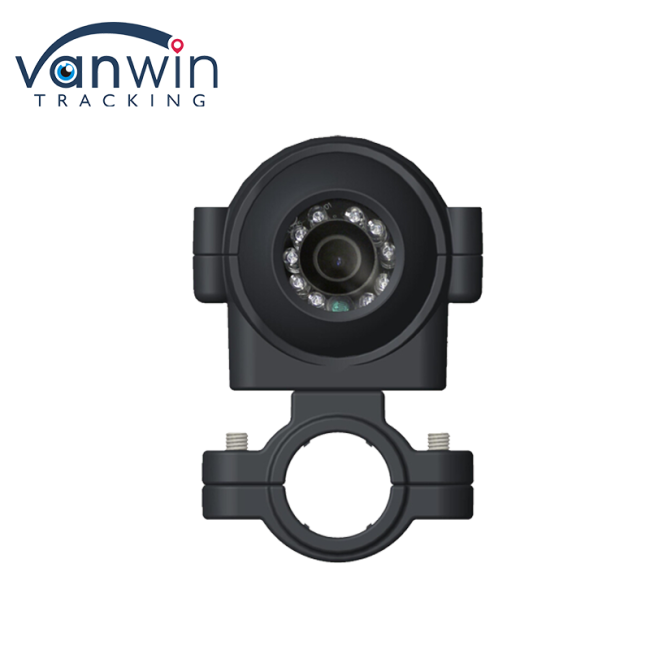

150 Degree Wide-Angle Night Vision Car Camera AHD Private Model Camera For Car Bus Truck
150 Angle Wide-Angle Night Vision Car camera AHD Private Model Camera For Car Bus Truck
Product Description
Enhance your driving experience with our Wide-Angle Front and Rear Side View Camera system. Designed for safety and convenience, this advanced camera system provides a comprehensive view of your surroundings, ensuring greater awareness and confidence on the road.
Key Features
- Wide-Angle Lens: Our cameras feature an impressive wide-angle lens that captures a broader field of view (up to 170 degrees) compared to standard cameras, minimizing blind spots and providing a clear view of nearby obstacles.
- High-Definition Video Quality: With HD resolution, our cameras deliver crystal-clear images, allowing for better visibility in various lighting conditions, whether it's day or night.

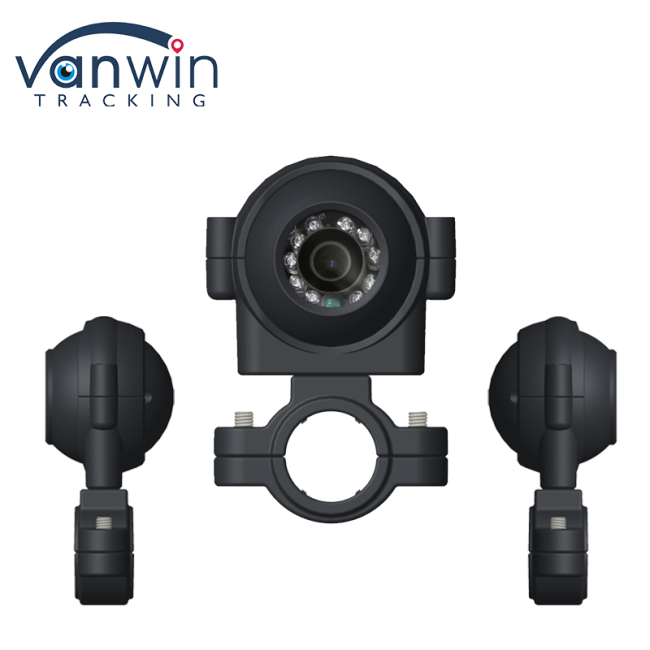

- Dual Camera Setup: This system includes both front and rear side view cameras, providing a complete 360-degree perspective around your vehicle. Perfect for parking, lane changes, and navigating tight spaces.
- Easy Installation: The camera system is designed for straightforward installation, compatible with most vehicle models. Detailed instructions and all necessary mounting hardware are included.
- Durable Design: Built to withstand harsh weather conditions, our cameras are waterproof and dustproof, ensuring reliable performance in any environment.
- Night Vision Capability: Equipped with infrared night vision, our cameras maintain high visibility in low-light conditions, enhancing safety during nighttime driving.

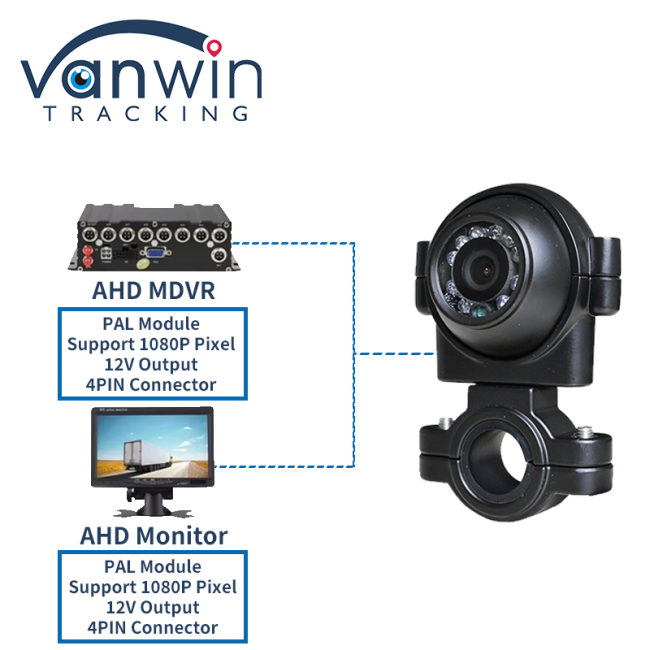

- Real-Time Monitoring: The system supports real-time video feed to your vehicle’s display screen, allowing you to monitor your surroundings without distraction.
- User-Friendly Interface: The integrated interface is intuitive and easy to navigate, making it simple to switch between camera views and adjust settings.
Reverse Camera Specification:
| Model | JK-AHD-C775 |
| Image Sensor | 1/4" progressive scan CMOS |
| Horizontal Resolution | 1.0Megapixel |
| TV system | PAL/NTSC |
| Effective pixels | 1280(H)*800(V) |
| Minimum Illumination | 0.01Lux@(AGC ON),0Lux with IR |
| S/N | ≥41dB |
| Day and night switch | Motor Driver ICR Filter Switch (Magnetic Valve Driver ICR optional) |
| Auto Gain Control | Support |
| Back light compensation | Support |
| White Balance | AUTO |
| Digital Noise Reduction | Adaptive digital noise reduction,2D/3D-DNR |
| Electronic Shutter | AUTO/1/50(1/60)-1(50,000Sec) |
| Video Output | Follow AHD standard |
| Image Function | Original/Reverse image |
| Output Adapter | 4P aviation head cable |
| Lens | 2.8mm(3.6mm Optional),M12*P0.5 |
| IR LEDS Quantity | 10 PCS Φ5 LEDS |
| IR distance | 10～15 meters |
| IP grade | IP69K |
| Operating Temperature/Humidity | -30°C~+70°C/Humidity≤90%(No condensation) |
| Power Supply | DC12V±10% |
| Power Consumption | ≤2.5W |
| Dimension | 112.5*75*50(mm) |
| Application scenarios: suitable for school bus, container trucks, harvesters, excavators and other side view camera, Mounting rod diameter: Ф20 ~ 30mm | |
Products Details:
Benefits
Increased Safety: Reduce the risk of accidents by gaining a better understanding of your environment, especially in challenging driving situations.
Improved Parking Accuracy: Navigate parking lots and spaces with ease, ensuring you can park confidently and accurately.
Enhanced Awareness: Stay aware of pedestrians, cyclists, and other vehicles, making every drive safer for you and those around you.
FAQ
1. Is the camera system compatible with all vehicle models?
The camera system is designed to be universally compatible with most vehicle models. However, we recommend checking the specific installation requirements and dimensions to ensure a proper fit for your vehicle.
2. How is the camera system installed?
Installation is straightforward and can typically be completed in about 1-2 hours. The package includes detailed instructions and all necessary mounting hardware. For best results, we recommend professional installation, especially for wiring.
3. Does the camera system work at night?
Yes! Our cameras are equipped with infrared night vision capabilities, providing clear visibility in low-light conditions. You can confidently drive at night or in dimly lit areas.
4. What is the resolution of the camera footage?
The cameras capture video in high-definition (1080p), ensuring that you receive clear and detailed images, allowing for improved visibility and better identification of objects around your vehicle.
5. Are the cameras waterproof?
Yes, our cameras are designed with an IP69K waterproof rating, making them resistant to rain, splashes, and dust. This ensures reliable performance in various weather conditions.
6. Can I view the camera feed while driving?
The camera system can be connected to your vehicle's display screen, allowing you to switch between camera views. However, we advise using the camera feed primarily for parking or low-speed maneuvers to maintain focus on the road.
