Mini Metal Housing AHD 1080P Square Front View Reverse Camera for Taxi, Suv, Car
Price:
$6-$18
MOQ:
5pcs
Delivery Time:
2-3 days for small order, 7-15 days for big order
Brand:
Vanwin Tracking
Product Description

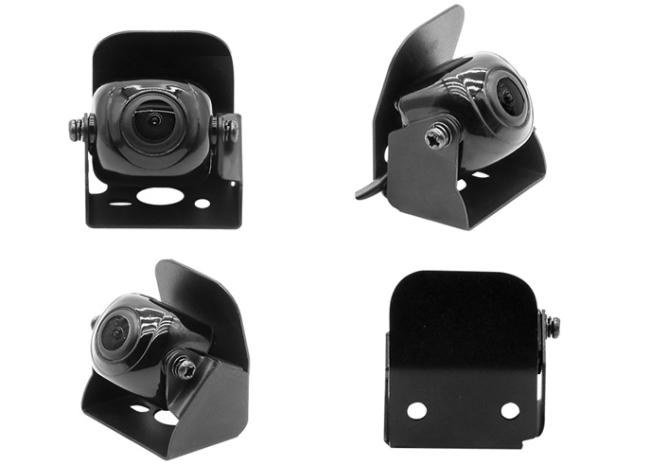

Mini Metal Housing AHD 1080P Square Front View Reverse Camera for Taxi, Suv, Car
Product Specifications
| Item | Parameter |
| Model | VW-139 |
| Imaging Device | 1/2.7 FH8536H + C2399 |
| System Standard | PAL/NTSC (software customizable) |
| Scanning Frequency | 50Hz/60Hz |
| Effective Pixels | 1280(H) * 720(V), 1920(H) * 1080(V) |
| Horizontal Resolution | 1000TVL/1200TVL |
| Minimum Illumination | 0.01 Lux @(F1.2, AGC ON); 0 Lux with IR |
| Day/Night Mode | Full Color Mode |
| Video Signal | AHD-720P/1080P HD video signal; CVBS (software customizable) |
| Function Control | Standard, Ruler, CVBS or AHD (software customizable switch) |
| Exposure Mode | Electronic Exposure |
| White Balance Method | Automatic |
| Backlight Compensation | Automatic, Manual |
| Electronic Shutter | 1/50 - 1/100000s |
| Dynamic Range | 72dB |
| Signal-to-Noise Ratio | 39dB |
| Brake Light Current | 12V, 30mA |
| Brake Light Voltage Range | Standard Voltage: 12V; Adaptive Range 8V-20V |
| Lens Material | All Glass 5G |
| Lens and Field of View | V=76°, H=122°, D=142° ±3° (larger angles customizable) |
| Camera Current | 85mA ± 5mA |
| Camera Voltage Range | Standard Voltage: 12V; Adaptive Range 8V-20V |
| Waterproof Rating | IP69K |
| Operating Temperature | -30℃ to +70℃ |
| Storage Temperature | -40℃ to +85℃ |
| Shell Material Color | Brake light and camera body: PC + Flame Retardant |
| Wiring |
4P-765 Female Connector, Definitions: 1.+, 2.G, 3.NC, 4.V |
Installation Steps:
1. Find a suitable angle to mount the parking camera (Fit for Front/Rear/Left/Right), then secure the nuts and bolts in place.
2. Connect the power cord to the backup light or brake Light or Left/Right signal light power supply.
3. Connect the 6m extension cable of the parking camera to the head unit/other monitor of the car.
4. Start the vehicle and reverse gear to test the camera.
5. Reinstall the console/other monitor.
2. Connect the power cord to the backup light or brake Light or Left/Right signal light power supply.
3. Connect the 6m extension cable of the parking camera to the head unit/other monitor of the car.
4. Start the vehicle and reverse gear to test the camera.
5. Reinstall the console/other monitor.

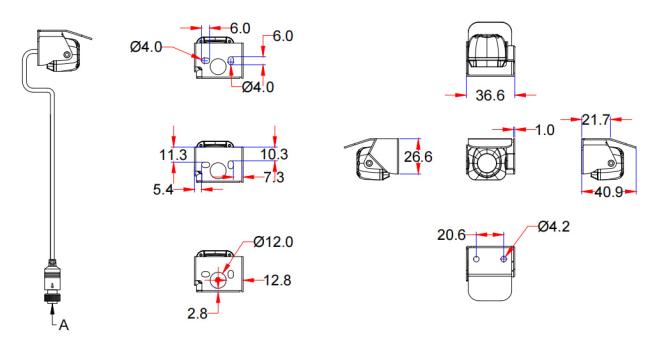

Camera Size
Applications:
Vanwin Tracking is proud to present our latest product - the VW-530 Vehicle Hidden Camera. As a leading manufacturer of vehicle surveillance systems in Shenzhen, China, we have designed this product with the highest quality and standards to meet the needs of our customers.
Application Scenarios
The VW-530 Vehicle Hidden Camera is perfect for small cars and taxis. It is a discreet and compact camera that can be easily installed in any vehicle. Its small size and high resolution make it ideal for capturing clear footage in any situation.
Product Features
- Small Back Up Camera: The VW-139 is a small camera that can be easily hidden in your vehicle. It takes up minimal space, ensuring a clutter-free and neat installation.
- HD Mini Car Cameras: With a 1080P resolution, this mini car camera provides high-quality footage. It captures clear and detailed images, making it perfect for recording any incidents on the road.
- Car Hidden Camera: The VW-530 is designed to be discreet and hidden. It is not easily noticeable, making it perfect for monitoring your vehicle without drawing attention.
- Vehicle Surveillance Camera: This camera is not just for recording, but also acts as a surveillance camera. It can monitor your vehicle 24/7 and capture any suspicious activities.
- Car Dash Camera: The VW-530 can be easily mounted on your car's dashboard. It provides a wide viewing angle of 110°, ensuring that the camera captures a larger area.
- Car Black Box Camera: With its high-resolution footage and continuous recording, the VW-902 acts as a black box for your vehicle. It can provide evidence in case of any accidents or incidents on the road.
- Car Hidden Camera System: The VW-530 is not just a camera, but a complete hidden camera system. It comes with all the necessary components for installation and can easily be connected to your vehicle's power source.
- Car Camera System: This camera system is designed to provide convenience and security to vehicle owners. It is a must-have for anyone looking to monitor their vehicle.
FQA:
- Q: What is the brand name of this product?
- A: The brand name of this product is Vanwin Tracking.
- Q: What is the model number of this product?
- A: The model number of this product is VW-530.
- Q: Where is this product made?
- A: This product is made in Shenzhen, China.
- Q: What certifications does this product have?
- A: This product is certified by CE, FCC, and RoHs.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 5pcs.
- Q: What is the price range of this product?
- A: The price range for this product is $6-$18.
- Q: How is this product packaged?
- A: This product is packaged in a neutral carton box by default.
- Q: What is the delivery time for this product?
- A: The delivery time for small orders is 2-3 days and for big orders is 7-15 days.
- Q: What are the payment terms for this product?
- A: The payment terms for this product are Western Union, T/T, and Paypal.
- Q: What is the supply ability for this product?
- A: The supply ability for this product is 50,000pcs per month.
