AHD & IPC Private‑Mold Dome Camera IP69K Waterproof, 120°/150° Ultra‑Wide, Optional Audio/IPC Camera
Price:
negotiated
MOQ:
5pcs
Delivery Time:
2-3 days for samples,15-30 days for large orders
Brand:
Vanwin Tracking
Product Description
AHD 1080P Vehicle Surveillance Camera 12V Bus Truck Car Camera
Product Outline:

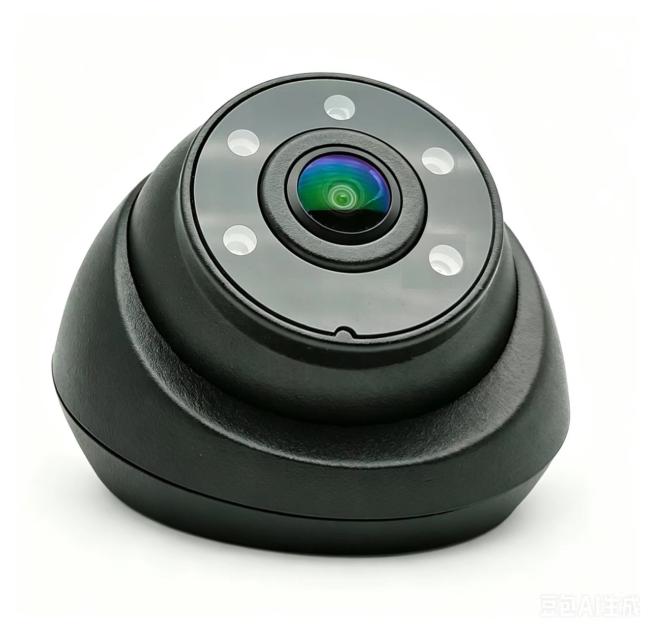

- Model: AHD & IPC private‑mold hemispherical camera
- Housing: Metal (black), rugged industrial design
- Lens: 120° / 150° ultra‑wide viewing angles
- Night Vision: 4 high‑power IR LEDs
- Power: DC 12V
- Video System: NTSC / PAL selectable
- Image Modes: Normal / Mirror

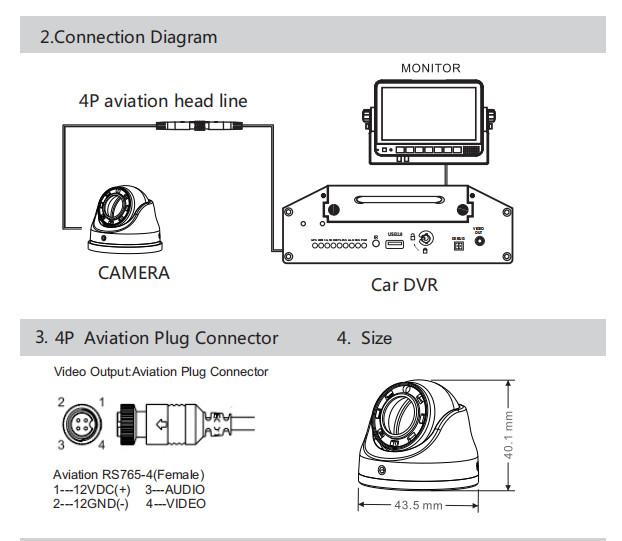

- Cable: 4‑pin dual‑shielded aviation connector cable
- Waterproof Rating: IP69K (outdoor ready)
- Durability: Salt spray tested 240 hours (private mold)
- Options: Built‑in microphone (audio), IPC version available
- Applications: Fleet, bus, taxi, truck, trailer, surveillance vehicles
- Key Benefits: High durability, wide coverage, easy OEM/ODM customization, reliable low‑light performance
Specification
| Image sensor | 1/2 .9 " CM OS | |||||||||
| Horizontal resolution | 2.0 Megapixel | |||||||||
| TV system | PAL/NTSC | |||||||||
| Effective pixel | 1920(H)* 1080(V) | |||||||||
| Minimum illumination | Color 0.05Lux , 0 Lux with IR | |||||||||
| S/N ratio | ≥ 56dB | |||||||||
| Day/Night mode | Color to Blackwhite switch automatically | |||||||||
| Sync system | Internal | |||||||||
| Backlight compensation | AUTO | |||||||||
| White balance | AUTO | |||||||||
| Electronic shutter | AUTO/1/50(1/60) -1(50 , 000Sec) | |||||||||
| Video output | AHD Standard , 1080P output | |||||||||
| Audio input | Built-in M ic(Optional features) | |||||||||
| Audio output | 1 Channel audio output | |||||||||
| Lens | 2.6 mm | |||||||||
| Viewing angle | D = 150, H = 120, V = 70 | |||||||||
| IR led s Qty | 4pcs LEDs | |||||||||
| IR distance | ≤ 10 meters | |||||||||
| Waterproof grade | IP69K | |||||||||
| Operating temp | -30 °C ~ + 80 °C | |||||||||
| Power supply | DC12V±10% | |||||||||
| Power consumption | ≤ 2.5W | |||||||||
Notes:
(1)Make sure the power is off before installation.
(2)Check and confirm the availability of right power supply. Wrong voltage will inflict
damage to component(s) in camera.
(3)Do not use camera in overheated and humid environment. Keep a good
ventilation so as to reduce fire and outrage.
(4)Only the professional technicians are entitled for installation and repair. By no
means, this camera shall not be repaired or dismantled on customer's own.
Manufacturer holds no responsibility in case of unauthorized repair, and use of
uncertified spare parts.
(5 )If abnormal conditions are found,please turn off the power supply and contact
the local dealers in time.
Strict testing process
1. Camera aging test
2. High and low temperature test
3. Waterproof vacuum test
4. Anti-vibration test
5. Salt spray test
6. Focusing technology test
