Front and Rear Dash Cam 4CH ADAS DMS Auto Video Recorder With 4G GPS WIFI Magnetic Camera for Truck

Price Negotiable
Price: $35-$40
MOQ: 1 pc
Delivery Time: 1-3 days for samples ,7~15 days for bulk orders
Brand: Neutral
Product Description

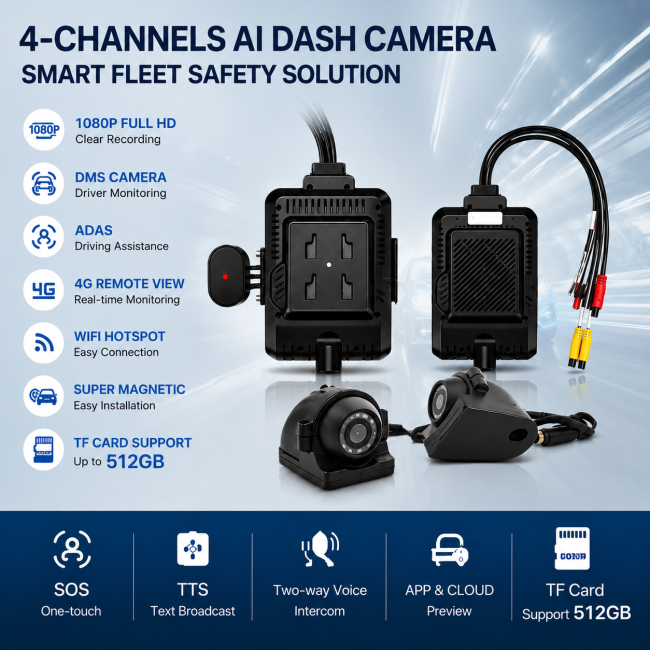

Front and Rear Dash Cam 4CH ADAS DMS Auto Video Recorder With 4G GPS WIFI Magnetic Camera for Truck

Product Description:

Elevate fleet safety, simplify compliance, and close deals with a demo‑ready solution engineered for real‑world operations.

Why fleets and integrators choose it

  • Advanced AI Safety Suite — Built‑in ADAS, DMS and BSD algorithms deliver real‑time driver alerts and blind‑spot detection to reduce incidents and insurance claims.
  • High‑quality recording — Front channel 1080p + three auxiliary channels (720p), H.265 compression for efficient storage and network bandwidth.
  • Always connected — Global 4G + Wi‑Fi hotspot, GPS/BeiDou dual‑mode positioning and dual‑IP uplink for reliable telemetry and remote access.
  • Robust continuity — Super‑capacitor protected file integrity for safe shutdown and secure video preservation.
  • Practical fleet features — SOS one‑touch, TTS text announcements, two‑way voice intercom, live preview via mobile app and cloud.
  • Demo‑ready design — Magnetic BSD cameras and plug‑and‑play installation let you demonstrate safety benefits on the spot — ideal for pilots and sales meetings.
  • Flexible storage & reporting — TF card support, event upload of AI‑flagged video, remote playback and historical track replay.


Main Features:

  • H.265 & H.264 encoding and decoding,Save storage space and transmission flow;
  • Support 1-channel 1080p * 25fps + 3-channels 720p * 25fps;
  • Built in one 1080p camera and external three HD cameras for easy installation;;
  • Built in AI intelligent algorithm, which can support ADAS,DMS and BSD functions;
  • Built in GPS + Beidou dual-mode precise positioning;
  • Support 1 TF card,super capacitor double guarantees the integrity of video files;
  • Support 1 SIM card, 4G module can support global frequency band;
  • Support WiFi hotspot.
  • Support mobile app, client, preview video and parameter configuration;
  • Support 2CH IO alarm input and 2CH of RS232;
  • Built in speaker and microphone, Support voice intercom between dash camera and platform. TTS voice broadcast;
  • One key SOS emergency alarm; Support low-power sleep;
  • Special file system to improve disk reading and writing efficiency,More stable video recording;

Technical Parameters:

ITEM Technical Specifications
CPU

Dual-Core processor@1.5GHz,Total coding resources 1080p*100fps

NPU@1.0TOPS neural network acceleration engine

Memory 2Gb DDR3
Video Input Active Pixels: 1920×1080,1080×720; H.264&H.265 format
  2-ch Built-in CMOS camera, Low illumination 0.01LUX
  2-ch External camera, AHD 720P@25fps
Video Output Not support,Support mobile APP preview and setting
Audio input / output Built-in MIC and speaker, G.711a format
Video recording resolution 1080P/720P/D1*25fps,Simultaneous recording of sound and video.
G-Sensor Built-in 3-axis acceleration
External interface 2-ch RS232, reserved for communication with peripherals
Alarm Input 2-ch sensor input,
Positioning module Built-in GPS / Beidou Positioning Module
4G built-in 4G module,TDD-LTE, FDD-LTE
WIFI Built-in, 2.4G,802.11b/g/n,STA or AP mode
TF Card Support 1 TF card, Support 16G/32G/64G/128G/256GB/512GB
USB Micro USB interface
Upgrade TF card and OTA
AI - ADAS Lane departure, collision alarm, Distance detection, pedestrian detection etc
AI - DSM Fatigue driving detection, Smoking, call mobile phone, Occlusion, Unsafe driving behavior habit detection
AI - BSD Blind area detection
Input voltage DC:+10V ~ +36V
Power consumption Normal working state < 5W (without external equipment)
Power off protection Super capacitor design, support abnormal power failure, ensure the integrity of video files
Working Temperature -25℃ to +70℃
Working relative temperature 20% to 80%
Equipment size 138mm*85mm*45mm
Net weight 0.4kg
