10.1inch Analog High Definition TFT Car Monitor System with 2 MP Resolution
10.1 inch Analog High Definition TFT Car Monitor System with 2 MP Resolution
Functions
1.The AHD monitor have 3 HD video input ,it means it can connect 3 AHD cameras for monitoring in the vehicle DC12-24V.
2. Also have normal monitor for optional ,like 5inch ,7 inch ,9 inch ,10 inch with quad or non-quad .Also with 7inch and 9inch monitor DVR for choice .
3. We would like to provide one full set for your testing with best price as we can .
You will like us and our products so much .
Advantages
1. Professional manufacture for MDVR system and different kinds of car monitors and cameras for optional.
2. We also have our own SMT factory with all kinds of chips production
3. All monitors and cameras and MDVR have been tested over 48 hours before sending .Quality and credit is our credit firstly .Welcome you to test and prove samples .
4. We are very honest and kind to serve you well .
5. Your money is safe here .
Specification
| Screen Ratio | 16 : 9 |
| Back Light Luminance | LED, 300cd/M2 |
| Resolution | 1024xRGBx600 |
| Compatible system | NTSC & PAL (automatically) |
| OSD control |
Brightness, Contrast, Saturation, Volume, Language (English, Simplify Chinese) |
| View angle | Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
| Image reversion | UP/Down and Left/Right |
| Power requirement | DC 12-24V |
| Power consumption | 5W |
| Storage temperature | -30 to 80 degree |
| Working temperature | -20 to 70 degree |
| Size | 285*184*34MM |
| Weight | About 680g |
| Key color | Black |
| AV Inputs | 3 channel HD video input, single image display, support 720P@25/30, 720P@50/60, 1080P@25/30 |
| Number of Trigger and display | 3 triggers |
| Optional functions | 4 PIN connector or RCA connector |
| Other features | OSD menu, Remoter control, Sunshade design around |
| Accessories | Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench |
| Package | 10pcs/box net weight: 15.08KGS gross weight:15.88KGS M: 62.4*46*24cm |

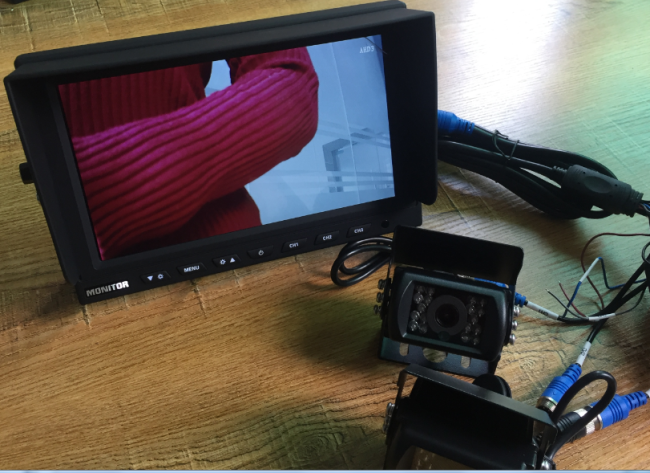

The Effect Picture with 1080P 3MP cameras
