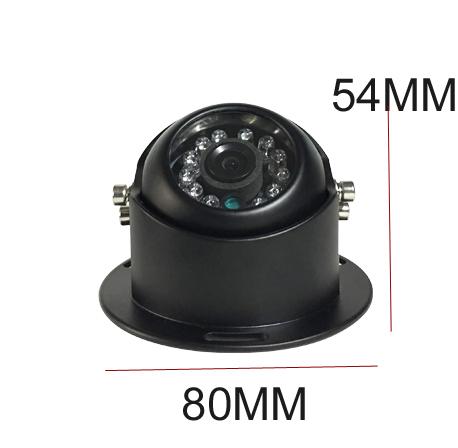

Mini 15M IR Metal Car Dome Camera Night Vision AHD 720P 140 Degree Wide Angle
Night Vision AHD 720P 15M IR Metal interior Mini dome camera for bus car van truck
Overview
This is a closed circuit television CCTV camera car surveillance HD dome camera. It works with 12pcs F5 infrared LEDs to create 15 meters infrared distance for night vision to monitor in dark environment. It adopts 2.8mm, 3.6mm or 6mm fixed focus lens to let you view objects within 10~15 meters. It can be worked with DVR recorder, quad processor, DVR card. It can be viewed through monitor, TV, PC, smart phone and etc.
Technical Specifications
| Image Sensor | 1/4＂AHD CMOS, 720P, 0.01Lux/F1.2 | 1/3＂AHD CMOS, 960P, 0.01Lux/F1.2 | 1/3＂AHD CMOS, 1080P, 0.01Lux/F1.2 |
| Video System | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Pixels | PAL/NTSC: 1280*720 | PAL/NTSC:1280*960 | PAL/NTSC:1920*1080 |
| Min Illumination | 0.01LUX(0 Lux IR on) | 0.01LUX(0 Lux IR on) | 0.01Lux (0 Lux IR on) |
| SNR | ≥46dB | ≥46dB | ≥48dB |
| Electronic Shutter | 1/50-1/10000(S) | 1/50-1/10000(S) | 1/50(1/60) - 1/100000 (S) |
| Video Output | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω |
| View Angle | 140° | 140° | 140° |
| Working Voltage | DC12V±0.5V | DC12V±0.5V | DC12V±0.5V |
| Consumption | 2.2W | 2.2W | 2.2W |
| Display image | Mirror/normal optional | Mirror/normal optional | Mirror/normal optional |
| MIC | Optional | Optional | optional |
There are three kinds pof connectors for option
1. 4-pin connector
2. RAC connector
3. BNC connector

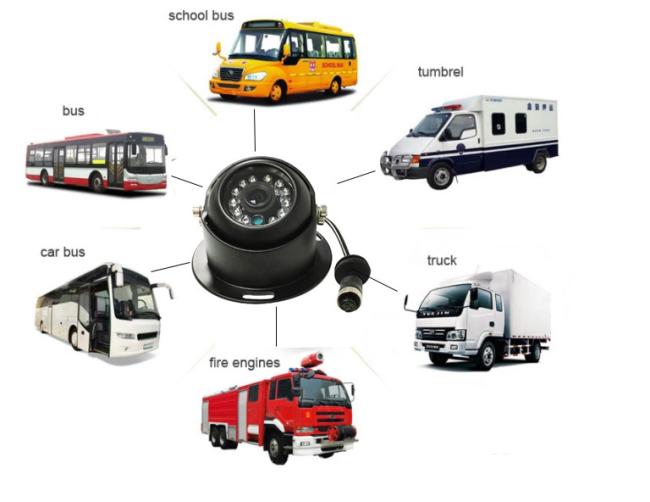

Applications
FAQ
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
