4 Channel Quad TFT Car Monitor 32GB SD Card 9inch For Dashboard VW702-DVR

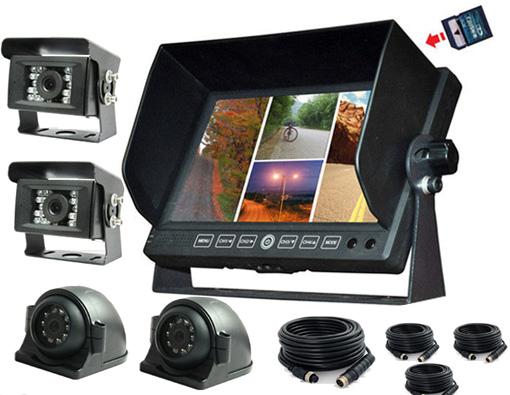

4 Channel Quad DVR Monitor 7 inch / 9inch Video Recorder with 4 truck cameras, 32GB SD Card
The system can work with 1~4 cameras to monitor the front, side and back of Truck, Van, Bus, Benz Motor - home, commercial van and can also support 32GB SD card recording. It's widely used in the Truck and Van for reversing and monitoring. We also have waterproof monitor, wireless DVR, mobile DVR for option.
Specification
| Screen Ratio:16:9 |
| Back Light Luminance:LED, 300cd/㎡ |
| Resolution:800xRGBx480 |
| Compatiblesystem:NTSC & PAL (automatically) |
| OSD control:Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
| View angle:Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
| Image reversion:UP/Down and Left/Right |
| Power requirement:12V DC (12-24V DC optional) |
| Power consumption:＜8W |
| Size:180mm*121mm*24mm |
| Key color: Black rubber oil, radium carving, through blue light |
| Shockproof level:4G |
| DVR image quality:DVR recording 4 channels video signal, VGA resolution:640*480, Recording speed: 60FPS, Storage format: AVI |
| Memory interface:1 SD interface |
| Video storage:SD high-speed card, maximum support 32G |
| AV Inputs:4 way video input,1way audio input |
| Number of Trigger and display:4 triggers |
| Optional functions:4 PIN connector, Butterfly style bracket |
| Other features:4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor |
| Accessories:Remote controller, Power supply cable , User manual, Bracket |
Pictures
BNC and 4-pin cable for optional below
Packaging & Shipping
1. Box can be color box, white box, OEM
2. Package includes power line, bracket, remote controller, headrest frame, insert card and user manual.
3. Goods will be shipped out within 2~7 days after the receipt of payment.
About US
We are professional manufacturer of 4ch/8ch mobile dvr system with monitors, cameras.They are used for vehicle fleeting management and safety monitoring.The full system are very necessary for buses , truck, school buses,tailer,police cars, bank money carrying cars and so on.
3G remote viewing real time monitoring function let you see what drivers and passengers are doing, where they are with GPS tracking .
Welcome you to test our Quality.
