30M SELF-PROPELLED ARTICULATED HYDRAULIC BOOM LIFT WITH 4 WHEEL DRIVE AND 360 DEGREE CONTINUOUS TURNTABLE SWING
Measurements Specifications:
|
No No |
Describe |
Performance parameters |
||
|
1 |
Max Working Height |
31.7m |
||
|
2 |
Max Platform Height |
30m |
||
|
3 |
Max Height (stowed) |
3.165m |
||
|
4 |
Max Working Radius |
20.2m |
||
|
5 |
Max Crossing Height |
12.2 m |
||
|
6 |
Width |
axle retracted |
2.49m |
|
|
7 |
axle extended |
3.35m |
||
|
8 |

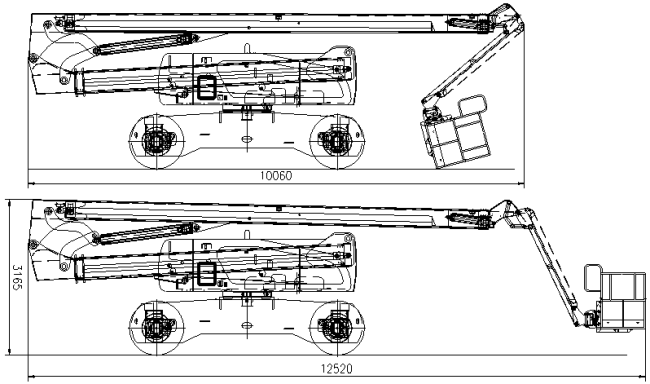

Length |
jib stowed |
10.06m |
|
|
9 |
Jib extended |
12.52m |
||
|
10 |
Lift Capacity |
restricted |
480kg |
|
|
11 |
Non-restricted |
230kg |
||
|
12 |
Wheel base |
3.66m |
||
|
13 |
Turning Radius Inside |
axle retracted |
4.14m |
|
|
14 |
axle extended |
2.74m |
||
|
15 |
Turning Radius outside |
axle retracted |
6.56m |
|
|
16 |
axle extended |
5.85m |
||
|
17 |
Turntable Swing |
360°continuous |
||
|
18 |
Swing Speed |
0～0.8rpm |
||
|
19 |
Platform Measurement(L×W×H) |
2.44m×0.91×1.13m |
||
|
20 |
Platform Leveling |
Automatically Leveling |
||
|
21 |
Platform Rotation |
±80° |
||
|
22 |
Quantity of Working Arm |
2+2+1 |
||
|
23 |
The maximum hydraulic pressure |
25MPa |
||
|
24 |
Voltage |
24V |
||
|
25 |
Tire |
12.00-20 solid tire |
||
|
26 |
Ground Clearance-center |
430mm |
||
|
27 |
Fuel Tank Capacity |
151 L |
||
|
28 |
Total Weight |
19000kg |
||
|
29 |
Travel Speed |
stowed |
4.4km/h |
|
|
30 |
Raised or extended |
1.1km/h |
||
|
31 |
Grade ability(stowed) |
21.8°(40%) |
||
|
32 |
Drive & Steering Type |
4×4×4 |
||
|
33 |
Engine |
CumminsB3.3-C80 |
||
|
34 |
Rated Power |
60kw/2200rpm |
||
Features:
1. It is a self-propelled articulated boom lift.
2. It can realize the lifting upwards, onwards, etc.
3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
4. The working height ranges from 12m to 45m.
STANDARDS COMPLIANCE EN280,JG/T5101,Q/ADZV001-2008
1. Functions of positioning upward&outward and crossing
1. Functions of positioningupward&outward and crossingThearticulating boom machine offers
muti-faceted functions of positioningupward,outward and crossing, so that you can reach whatever placeyouwant to go through various ways.
2. Complete safety devices
Standard configuration include four-link weighing devices, overload protection, automated detection device for detecting platform amplitude and height (automatic amplitude limiter), automatic control of
the movement speed of the boom and traveling speed, and high-precision load sensor, to ensure the safety and stability of operation in all directions.
5. Strobe light------Give alerting signal when working
6. Rotary platform------The rotary actuator with standard configuration can make the rotation range
of the platform reach ±80°, which makes your work more flexible.
7. Active oscillation axle
Active oscillation axle can preceive the terrain, and can guarantee that the
machine can land on four wheels even on uneven road without reducing the
driving force
8. Swing-out engine tray It is easy for maintenance and repair
9. Hydraulic system
Closed circuit hydraulic traveling system has speed easily to be adjusted, wide speed range; the boom's hydraulic
system adopts double value core circuit. which enhance the safety. The
hydraulic components adopt European and North American pure brands.
10. Driving mode 4*4(optional)
The four-wheel drive is powerful with great grade-ability
11. Production plant
