1000kgs Asphalt Output Mobile Asphalt Drum Mix Plant , 20TPH Asphalt Concrete Plant
1000kgs Asphalt Output Mobile Asphalt Drum Mix Plant , 20TPH Asphalt Concrete Plant

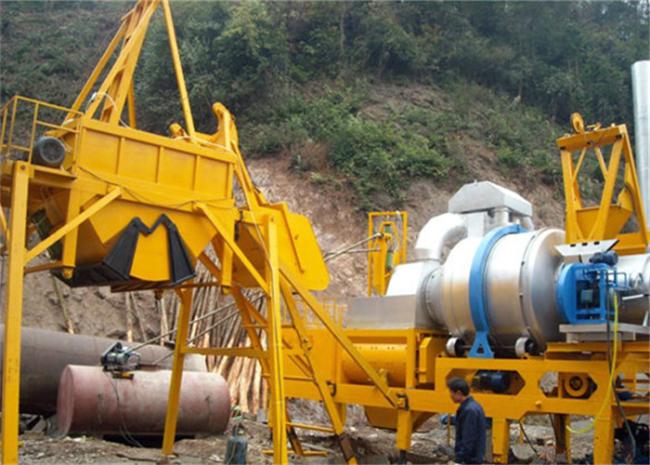

20TPH Mobile Asphalt Batch Mixing Plant QLB-20 With 1000kgs Feeder Hopper Capacity
Specifications:
|
Capacity |
20 tph |
|
|---|---|---|
|
Fuel consumpution |
5.5-7.5kg/t |
|
|
Feeder hopper capacity |
1000kgs |
|
|
Asphalt output |
1000kgs |
|
|
Aggregate size |
<=50mm |
|
|
Aggregate Bins |
2.3M3x3 each, accumulative scale |
|
|
Accuracy |
Aggregate |
≤2000kg±3% |
|
|
Fly ash |
≤180kg±2％ |
|
|
Asphalt |
≤180kg±2% |
|
Product temperature |
120~165 ℃,adjustable |
|
|
Total consumption |
63.5 kW (Oil burner) |
|
Configuration List:
|
Item |
Description |
Unit |
|---|---|---|
|
Main parts
|
Chassis (Front,rear axle) |
1set |
|
|
Burner |
1unit |
|
|
Drying drum and drive system |
1unit |
|
|
Mixer drum and drive system |
1unit |
|
|
Cyclone dust filter |
1unit |
|
|
Blower |
1unit |
|
|
Vent |
1unit |
|
|
Bitumen Scale |
1set |
|
Control System
|
PLC |
1set |
|
|
Control panel |
1set |
|
|
Touch screen |
1unit |
Brief to the QLB series mobile asphalt plant:
1 , Adopts intermittent drying cylinder, with double compulsory shaft mixer,
mainframe can be trailed to walk,
2 , Occupied less area while short installation period, easy for operation and
maintenance, stability, automation, high standardization,
3 , Finished goods are high quality, excellence technology, suitable for
high-grade road asphalt paving and maintenance.
Description:
1) Rated productivity: 20tph
2) Suitable material: bitumen, aggregate
3) Feeder hopper capacity: 1000kg
4) Main power: oil burner 63.5kW, coal burner 86.5kW
5) Product temperature: 120~165°C, adjustable
6) Burner: oil, coal and oil
7) Control system: PLC, auto-control and manually, electronic cabin and
control panel,
