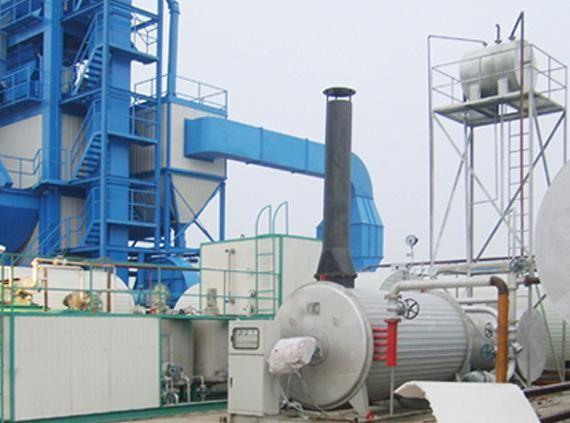

922KW Electric Power Asphalt Mixing Plant With 200tons Finished Storage Bin

320Tons / Hour Capacity Mobile Asphalt Batching Plant AMP4000 - C With 922KW Power

320 TPH Stationary Asphalt Batching Plant AMP 4000 - C With 200tons Finished Storage Bin

Specifications:


• Maximum production: 320 t/h
• Maximum mixing capacity: 4,500 kg / batch
• Rate output included aggregate, bitumen and filler
• Filler weighing accuracy: ≤±2% (Continuous real-time detect)
• Aggregate bitumen ratio accuracy: ≤±0.3%
• Bitumen weighing accuracy: ≤±1% (Continuous real-time detect)
• Aggregate weighing accuracy: ≤±2% (Continuous real-time detect)
• Working environment noise level: ≤80 db(A)
• Aggregate temperature accuracy: ≤±3ºC
• Fuel consumption (diesel): ≤6.5 kg/t
• Standard layout area approx. 48 m x 40 m (Flexible to be adjusted to fit actual job site limitation)
• Noise level in control room: ≤70 db(A)
• Dust emission (Filter bag system): ≤90 mg/Nm³
• Operation: Automatic / Manual / Fully computer controlled
• Working voltage: 380V/50 HZ
• Desired environment temperature: 20 ~ 50ºC
• Operation voltage: 922 kW
• Aggregate moisture content; ≤5%
• Working altitude level: ＜2,500 m
• Aggregate sandiness rate ≤45%
• Aggregate density; 1,700 kg/m³
• Gradation of aggregate should be continue.
• Filler moisture content ≤1%, and not block
• Fuel Calorific value ≥9500kcal/kg
• Ph value: ≥7
• Material not porous and hygroscopic with normal shape

 Cold Feed System


• Imported Frequency Converter Controller for Belt Feeders, places typical magnetic speed controller.
• No flow switches for every hopper, signal to control room for run out of aggregate or blockage.
• Speed adjustment of Frequency Converter in control room, easy operates, visible on screen, reliable operation, stable accuracy adjustment, and low malfunction performance.
• Equipped with pre-vibrated screen device, located at inlet position of Inclined Conveyor, screen out large aggregate without enter Dryer Drum, effectively reduces foul material of system.
• Vibrators for sands hoppers, avoid material blockage; oversize meshes for hoppers, avoid large aggregate to system, provides reliable operation of system.
• Reduce foul material benefits save energy, increase heat efficiency, protect Dryer Drum, increase reliable operation of Hot Elevator and Screen Deck, and finally increase working life of equipment.

Quantity: 5 sets

Capacity: 12 m³

Loading width: 3.5 m

Loading height: 3 m
