Hot Selling Fast Response Molten Steel Consumable Disposable Thermocouple Head/Tip For Steel Mills
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
7~10 working days
Brand:
GME
Product Description
Hot Selling Fast Response Molten Steel Consumable Disposable Thermocouple Head/Tip For Steel Mills
Description:

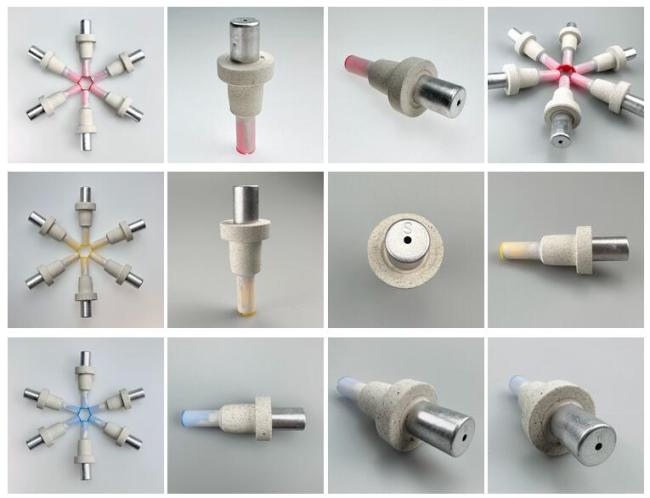

Disposable temperature thermocouple tips.
The coupling head mainly has positive and negative coupling wires welded on the compensation wire, and the compensation wire is embedded in the bracket. The bracket is covered with a small paper tube, and the coupling wire is supported and protected by quartz. The outer part is equipped with anti-slag cap, all the components are concentrated into the mud head and bonded into a whole with refractory filler, and can not be disassembled, so it is disposable.
KR/KS/KB/KW-602/604 Temperature Sensor for Molten Liquid Steel Immersion Disposable Expendable Thermocouple, which insert into the molten metal for measuring the temperature in the steel making industry.
The immersion thermocouples are with high accuracy and reliability.We can also supply sensors for any application.For example,variations in length,slag cap and thermocouple types to suit the customer's precise requirements.
Specification:
|
Name
|
Type
|
Model
|
The best
|
Max
|
Accuracy
|
Wire diameter(mm)
|
|
PtRh10%/Pt
|
S
|
KS-602/604
|
1500-1700
|
1750℃
|
≤±5℃
|
0.05
|
|
PtRh13%/Pt
|
R
|
KR-602/604
|
1400-1600
|
1750℃
|
≤±5℃
|
0.05
|
|
PtRh30%/PtRh6%
|
B
|
KB-602/604
|
1400-1600
|
1800℃
|
≤±5℃
|
0.05
|
|
WRe5%-WRe26%
|
C
|
KC(KW5/26)602/604
|
1500-1700
|
1800℃
|
≤±7℃
|
0.08
|
|
WRe3%-WRe25%
|
D
|
KD(KW3/25)602/604
|
1500-1700
|
1800℃
|
≤±7℃
|
0.08
|
