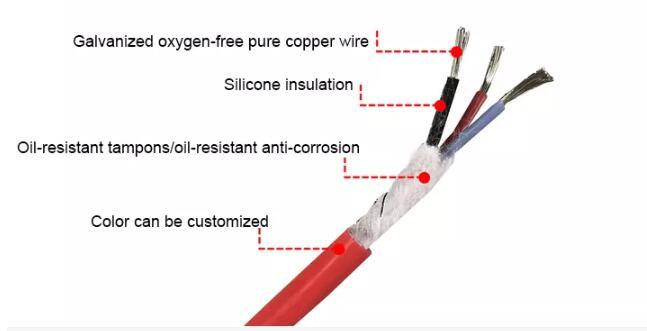

High Voltage Silicone Rubber High Temperature Cable Heat Resistant 3 Core 220v
3 core 220v high voltage heater resistant silicon rubber high temperature cable
Description:
1) The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature
measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are
used in processes to sense temperature and is connected to the pyrometers for indication and control.
2) The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for
sensing the temperature.
Products Description:
| Name: | Super soft silicone wire |
| Rated voltage | AC 600V DC 3KV |
| Temperature range | -60℃~200℃ |
| Copper wire diameter | 0.08mm |
| copper wire quantities | 60-3200pcs |
| Size | 0.3mm2~16mm 22AWG~6AWG |
| Scope of use | Industrial use/civil use/sensor, etc. |
| Color | RED/BLACK/WHITE/BLUE/GREEN/GARY/YELLOW ETC |
| Model | wire diameter | Copper wire diameter | Coat diameter | Insulation thickness | Conductor resistance | Sectional Area | Allowed current | Roll/Meter |
| 3AWG | 6700/0.08mm | 7.73 | 13 | 2.6 | 0.89 | 33.7 | 500 | 50 |
| 4AWG | 5000/0.08mm | 6.53 | 11 | 2.4 | 1.25 | 25 | 400 | 50 |
| 6AWG | 3200/0.08mm | 5.2 | 8.6 | 1.65 | 1.21 | 16.08 | 300 | 100 |
| 8AWG | 1650/0.09mm | 4.4 | 6.8 | 1.5 | 4.1 | 8.29 | 190 | 100 |
| 10AWG | 1050/0.09mm | 2.92 | 5.8 | 1.35 | 6.3 | 5.3 | 140 | 100 |
| 12AWG | 680/0.09mm | 2.41 | 4.8 | 1.3 | 9.8 | 3.4 | 88.4 | 100 |
| 14AWG | 400/0.00mm | 1.85 | 3.8 | 1 | 15.6 | 2.07 | 55.6 | 200 |
| 16AWG | 252/0.00mm | 1.41 | 3 | 1 | 24.4 | 1.27 | 35 | 200 |
| 18AWG | 1500/0.08mm | 1.13 | 2.3 | 0.85 | 39.5 | 0.75 | 22 | 200 |
| 20AWG | 100/0.08mm | 0.92 | 1.8 | 0.55 | 62.5 | 0.5 | 13.87 | 300 |
| 22AWG | 60/0.08mm | 0.72 | 1.7 | 0.5 | 88.6 | 0.33 | 8.73 | 300 |
Silicone, fiberglass, , PFA, FEP, PTFE, PVC, Quartz Fiber, Kapton
