Bayonet Thermocouple Accessories Customization Available
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
7~10 working days
Brand:
GME
Product Description
bayonet thermocouple accessories customization available
Description:
Imported screw, spring and detector thermocouples and soft lead wires can be bent at will. Particularly, F model is painted with high-temperature-resistant material on the shield outer layer, which improves the insulation, induction electrical resistance of outer layer and increase the safety coefficient, especially in the place that has frequent movements of machinery equipments installation. It is hard to break and has improved the lifespan, which is widely used in machinery including plastic, rubber, package and food.

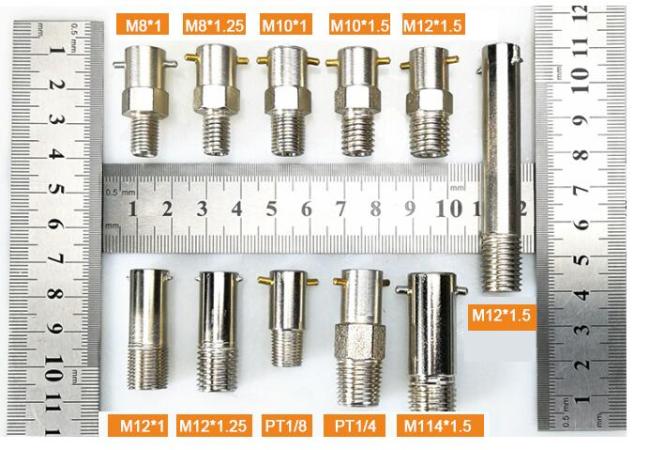

| thread | Stander size M12*1.5 |
| Customized thread size | M8*1/M8*1.25/M10*1/M10*1.25/M12*1M/M12*1.25 |
| Tube diameter | 5mm(Stander) 3mm/4mm or customized |
| Tube length | 30mm or customized |
| Wire diameter | 2*0.4mm |
| K type | 0-800 ℃ |
| E type | 0-400 ℃ |
| J type | -45-300℃ |
| Pt100 |
-45+300 ℃ |
