Rigid Short Tubular Heater Customzied Size 8x73mm Stainless Steel

OVERVIEW

GME tubular elements are the most versatile and best suited solutions to a large number of applications. This is why they are found in major modern heating applications and are known for their superior qualities.

KEY FEATURES AND BENEFITS
• Standard diameters: 6mm, 8mm, 10mm, 12mm, 15mm
• Available in a broad variety of sheaths, diameters and ratings
• Supplied with electrically isolated sheath
• Provide superior internal electrical insulation and heat conduction
• Easy to install
• Configurable to virtually any shape
• Compact
• Precise and easy control of heat output
• Durable
• Easy to maintain

SELECTING
Depending on their rating, sheath and shape, GME tubular elements are used in a variety of heat applications (conduction, convection, radiation heating) that require process temperatures of up to 750°C (1 382°F) to heat liquids, gases and solids.

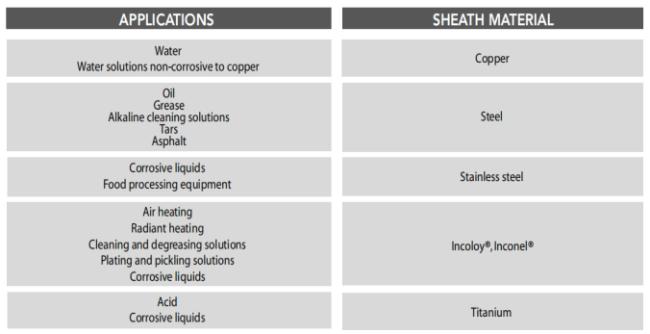

Please consider the following factors to select the ideal GME tubular heater for your application:

• Heating element watt density

• Sheath material (corrosive or non corrosive)

• Temperature of the corrodent

• Degree of aeration of the corrodent

• Velocity of the corrodent

• Ambient temperature

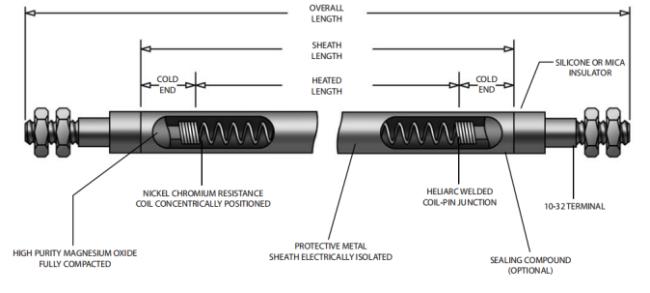

CONSTRUCTION
