Customizable MgO Insulation Immersion Tubular Heater For Solar Water Heater

Price Negotiable

Price: Negotiable

MOQ: 50pcs

Delivery Time: 7~10 working days

Brand: GME

Product Description

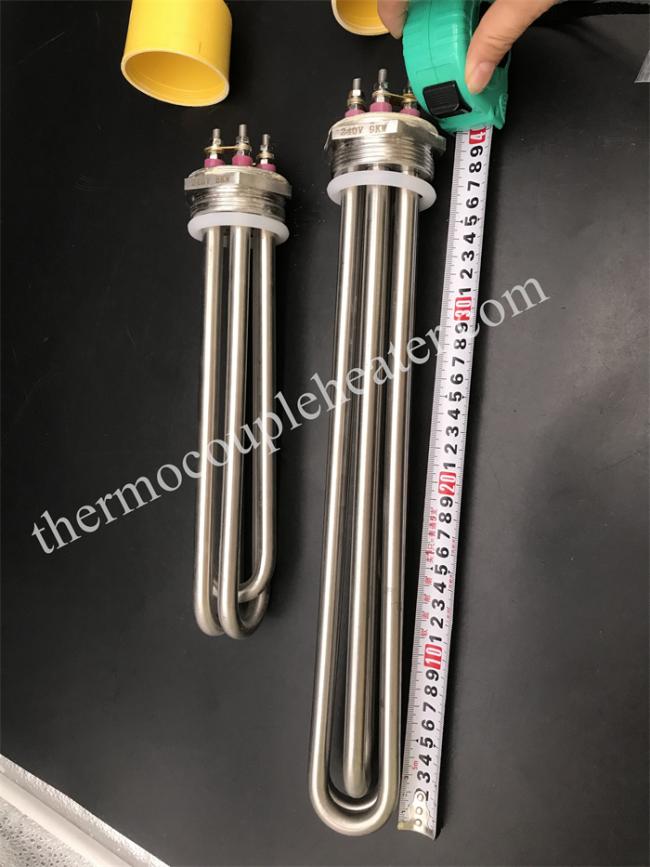

Immersion Tubular Heater For Solar Water Heater

Description:

waterproof electric heating element 2000w immersion water heater 220v 4500w is made of the electric heating elements and flanges. It's mainly used for heating large, medium and small containers, and the oil, water, viscous liquids, molten materials and gases in tanks. large, medium and small containers and storage tanks.

Specification parameter	Detail	Remark
Sheath Material	SUS304	Materials can be changed to be copper , sus321 ,sus316L ,incoloy804,incoloy800 as requested
Voltage/wattage	12V 100W200W600W	Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance(cold condition)+5%-10%
Tube Diameter	8.5mm	Tube diameter can be changed to 6.6mm,7mm,8.0mm,8.5mm,10mm or other as requested
Resistance Powder	Magnesium oxide	We can use other powder if requested
Resistance Wire	Ni80Cr20	Ocr25Al5 or other material if requested
Faston Terminal	Nickel plated iron	Material of terminal housing could be stainless iron,stainless steel if required
Leads	Stainless steel	Materials of terminal piece could be stainless iron,stainless steel if required
Screw Thread	1"or2"	Other thread can be made if required
Shape	as requirement

Application:

1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
