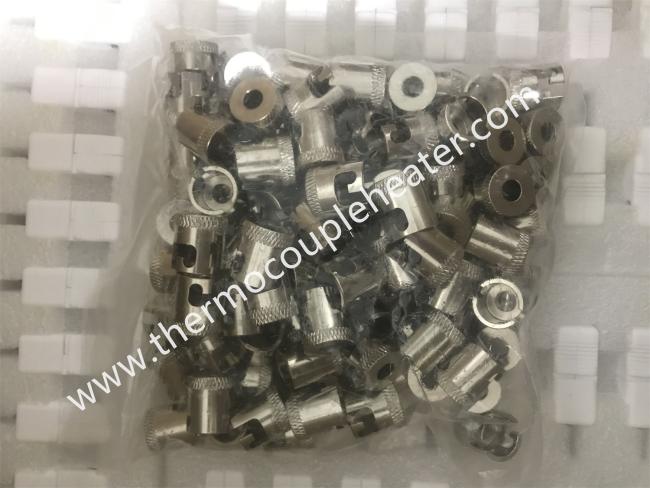

NICKEL PLATED BRASS BAYONET CAPS Single Slot for Springs-type Thermocouple
NICKEL PLATED BRASS BAYONET CAPS Single Slot for Springs-type Thermocouple
Description:
Bayonet caps provide a method of quick fitting into suitable adapters located in the process; this technique is widely used in plastics machinery
.
Specification:
Grading number: TYPE K, type E
Temperature range: 0 ~ 600℃, short-term 800℃ (TYPE K), 0 ~ 400℃, short-term 600℃ (type E)
Length of shielding wire (tail wire) : High temperature shielding wire (metal shielding), 0.5-10 m in length
Normal use of the probe diameter: φ0.5mm/φ0.6mm/φ0.7mm......
Interface thread: M12 *1.5 (please specify special thread, such as M10 *1.5)
Front probe: national standard φ5*30 (special length please specify, such as: φ5*30mm ~ 100mm)
Length of jacket: 32mm (please specify the special length, such as 70mm, 100mm)
| Product name | Single Bayonet Caps |
| Application | Thermocouple |
| Material | Brass with Nickel-plated |
| Slot Type | Single |
| Size | Can be customed |
| Tolerance | -/+ 0.005mm |
| Minmum order | 500-1000pcs |
| Pakage | Inner plastic and outer carton |
| Production capability | 100000 per month |
| Certification | ISO9001 2008 |
Application:
- Food processing equipment
-
Plastic injection molding machinery
- Engine and turbine exhaust gas
- Semiconductor processing
- Heat treating and metals processing
- Medical equipment
- Aerospace industries
- Packaging equipment
- Test stands
