Robust & Reliable: Mineral Insulated Thermocouple Cable for Demanding Environments

1. Overview

Ml cables is the mould-pressed solid Integrity of combined stainless steel protective pipe , magnesium oxide insulation powder and thermocouple materials. Its merits include press endurance, vibration resistance, bending capability, mini size, quick respond, etc. It acts as the key material of Ml thermocouple.

2. Features

Mineral insulated cable is widly applied in industry, a proven choice for high temperature probe fabrication.

High temperature resistance, anti-corrosion, anti-oxidation, long life time and rapid heat reponse.

Sheath material can be selected to fit different applications.

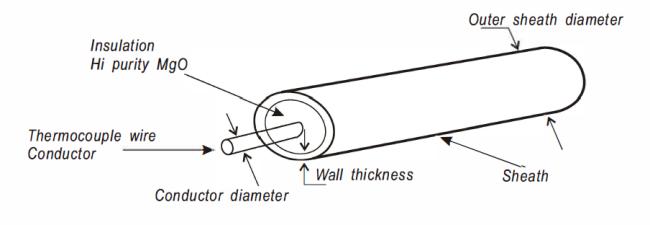

3. Structure chart

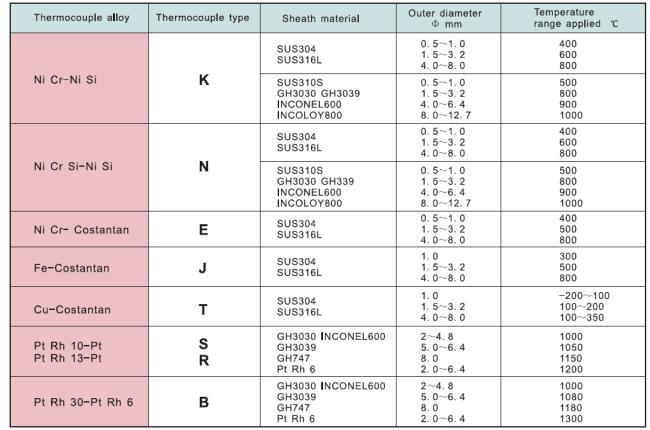

4. Structure data:

* High quality semi-finished Ml probe is on offer. Nice endings, high accuracy conforms to IEC584, gounded&ungrounded, minimum outer sheath diameter 0. 5mm for Ml thermocouple probe ungrounded, professional packing condition for protecting bare wires.
