Reliable Precision Up To 1100°C: Type K Quartz Fiber Braided Thermocouple Cable
Reliable Precision Up To 1100°C: Type K Quartz Fiber Braided Thermocouple Cable
1. Brief Introduction
This high-performance Type K thermocouple cable features specialized quartz fiber braiding capable of withstanding continuous operating temperatures up to 1000°C. Engineered for extreme environments, it provides stable and accurate temperature sensing with a peak exposure limit of 1100°C.

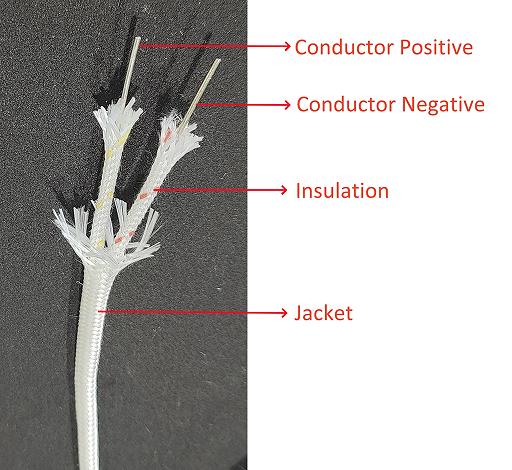

2. Construction
3. Technical data:
| Conductor | |
| Type | K |
| Grade | Thermocouple grade |
| Material | + NiCr / - NiAl |
| Constructure | Solid |
| Number of Strands / Strand Diameter (mm) | 2 x 1 / 0.8mm |
| Section Area (mm2) | 2 x 20AWG approx. 0.5mm² |
| Insulation | |
| Material | Braided quartz fiber |
| Color | White |
| Tracer | + Yellow, - Red |
| Number of Pairs | 1 pair |
| Laying | In parallel |
| Outer Jacket | |
| Material | Braided quartz fiber |
| Color | White |
| Overall | |
| Operating Temperature |
Up to +1000℃ Continuous Up to +1100℃ Single exposure |
4. Order Code Example
When asking for quotations, customers are required to provide order specifications, including
- Type
- Working temperature
- Conductor Size
- Constructure
- Color Code
- Order Quantity
Example:
