High Density 3mm Diameter Mini Cartridge Heater for Molding Heating

Descriptions:

Cartridge heater  is cylindrical electrical heating elements. Protected with a stainless steel sheath, their  watt density can reach 25 W/cm2 and their operating temperature   can go up to 800°C (1472°F).

Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater  can also be used for heating up water of gases under certain conditions.

Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc .

Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries

Various cartridge heater technologies are available. The choice of technology will depend on technical specifications required and the application. Unless you know exactly which product you are looking for,  we will recommend you the best solution for your needs.

Specifications

1. Wattage Tolerance: +5%, -10%

2. Resistance tolerance: +10%, -5%

3. Length tolerance: ± 2% or 3.2mm (1/8”), whichever is greater.

4. Camber tolerance: 1.7mm per meter (0.020” per foot).

5. Diameter tolerance: Diameter at each end may vary +0.05mm -0.1mm (+.002" -.004")

6. Escape of current (when cold): <=0.1mA a 242 v

7. Insulation (when cold): 5 Min Ohmios 500 Watts minimum

8. Insulation resistance (cold): ≥ 50 MΩ;

9. Maximum leakage current (cold): ≤ 0.5 mA;

10. Dielectric strength: 1500v. 1/seg

11. Tolerance of cut of connexion: +/-15 mlm

Applications

1. Freeze protection and deicing of equipment in cold climates or applications

2. Humidity Control

3. Patient Comfort heating used in medical devices

4. Mold die and platen heating

5. Seal bars used in packaging equipment

6. Test sample heating in gas chromatography

 Features

1. High power density (heat area surface power 10~25w/cm2)

Working temperature≤450℃

2.  Middle, low power density (heat area surface power 5~11/cm2)

Working temperature≤ 300 degrees

 Votage:12~250V (or as requirement)

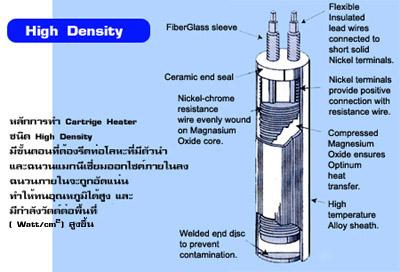

3. High Density Construction
High-quality stainless steel construction provides long-lasting protection even in the most rugged industrial

environments

4. Protected with a stainless steel sheath, their watt density can reach 50 W/cm2 and their operating

   temperature can go up to 800°C.
