High Temperature Alumina Ceramic Thermocouple protection Pipe

1.Thermocouple Protection Pipe Brief Introduction

High temperature ceramic thermocouple protection tube are used in the thermocouple assembly which applied for the high temperature measuring.

Al2O3 content determines the measuring temperature level,  Al2O3 content higher, the temperature is higher.

Alumina has a wide application due to its versatility and low material cost. Alumina possesses a high melting point, strong hardness, and good chemical stability, making it a good material to withstand high temperature and chemical corrosion. Call for any custom production request.

2.Thermocouple Protection Pipe Characteristics

• High quality: Max working temperature 1800C, high abrasive resistance.

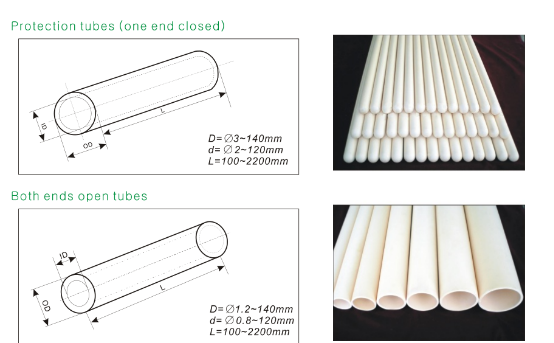

• Various sizes for your choose, diameter from 1-120mm, length from 10-2000mm
• Various processing methods make right tubes for different usage, including extruding, casting, pressing etc.
• Tubes can be grinding, drilling holes etc according to the requirements of customers.
• Large quantity in stock can provide fast delivery and very competitive prices.

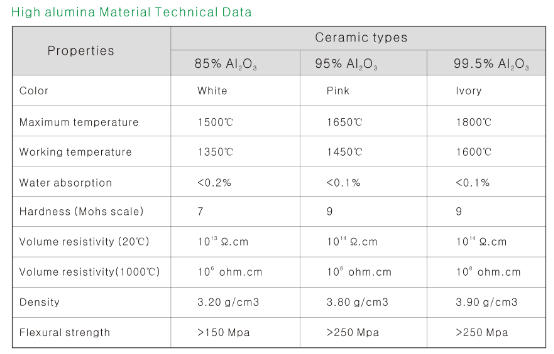

3.Thermocouple Protection Pipe Parameter.

4. What we are focusing on:

• NO minimum order quantity.
• Free samples of all normal items upon requests.
• Fast answer to your inquiry within 10 hours.
• Customized items are open to discuss.
• high quality&competitive price.
• large stock for quick lead time.

5. Transportation
