Aluminum Alloy CMI Thermocouple Connection Head of Good Pressure Resistance Performance

1. Description:

Thermocouple heads provide the means for making connection between thermocouple and extension wire, and protect the connection against corrosion, abrasion and breakage caused by handling.

Thermocouple heads are easy to install and are convenient for checking Purposes.  An outlet for conduct connection is provided with a selection of threaded outlet sizes for the protection tube.

Available in aluminum or cast iron, these heads are superior in durability and convenience. A quick acting, tempered wire clamp holds the molded cover tightly against a gasket, making a positive seat. Aluminum head weighs 10 ounces; cast iron head weighs 27 ounces.

2. Specifications:

1. Approved IEC529 IP65

2. Terminal block: 2P, 3P, 4P, 6P ,8P

3. Terminal block material: Bakelite or ceramic.

4. CMI Thermocouple head

5. Type: CMI, all type available

6. Standard wire entry and probe entry;

7. Wide range of specification;

8. High precision painting

9. Accessory: cover sealing and cable gland sealing in silicone free material

10. Protection level: IP65 of IEC529 Enclosure protection class

11. Place of Origin: China (Mainland)

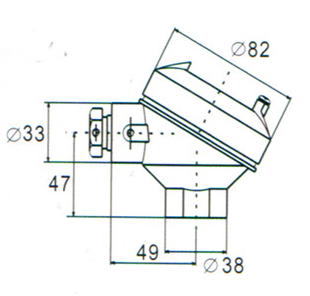

3. Technical Drawing:

4. Application:

• Excellent appearance with fine finish.

• Assembling easily.

• Available for Spring-loaded blocks.

• Standard size is suitable for various types of blocks, an international design.

• Can assemble with thermocouple and RTD

5. Competitive Advantage:

1. Mullti explosion-proof type, good explosion-proof performance

2. Wide measuring range

3. High mechanical strength and good pressure-resistant performance

4. Certain modification can be done according to your designs

5. Beautiful outlook and good performance

6. Suitable for all kinds of thermocouple or thermal resistance

7. Small minimum order quantity

8. All sizes available

9. Make head with logo according to your demand

10. Excellent corrosion resistance

11. Moisture and dust-resistant

12. High precision painting
