High Temperature Mineral Insulated Thermocouple Cable / MI Cbale
High Temperature Mineral Insulated Thermocouple Cable/ MI Cbale

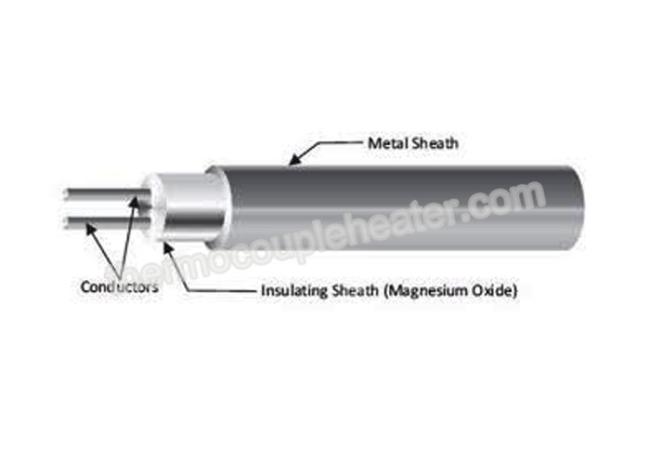

Feature
1). Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
2). Core number: 2, 4 or 6 cores
3). Sheath material: SS321(SS304), SS316, SS310, INCL600
4). Insulator: 99.6% high purity MgO
5). Dia(mm): from 0.5mm to 12.7mm
Specification
| Outside Sheath Diameter available | 0.25mm-12.7mm |
| Calibration Available | J, K, T , E , N, S, R, B |
| Sheath Material |
304 Stainless Steel |
| Sheath Material | Maximum Temperature In Air | Melting Temperature |
| SS304 | 900℃ | 1405℃ |
| SS321 | 870℃ | 1400℃ |
| SS316 | 925℃ | 1370℃ |
| SS310 | 1090℃ | 1405℃ |
| INC600 | 1090℃ | 1400℃ |
| Conductor | Calibration | Accuracy | |||
| I | II | ||||
| Tolerance | Temperature | Tolerance | Temperature | ||
| Ni Cr - Ni Si | K | 1.5 or 0.4%t | -40~1000 | 2.5 or 0.75%t | -40~1000 |
| Ni Cr Si- Ni Si | N | -40~1000 | -40~1000 | ||
| Ni Cr - Konstantan | E | -40~800 | -40~800 | ||
| Fe - Konstantan | J | -40~750 | -40~750 | ||
| Cu - Konstantan | T | 1.5 or 0.4%t | -40~350 | 1 or 0.75%t | -40~350 |
| Pt Rh 10 - Pt | S | 1 or 1+(t-1100)x0.003 | 0~1600 | 1.5 or 0.25%t | 0~1600 |
| Pt Rh 13 - Pt | R | 0~1600 | 0~1600 | ||
| Pt Rh 13 - Pt Rh 6 | B | --- | --- | 600~1700 | |
Company introduction

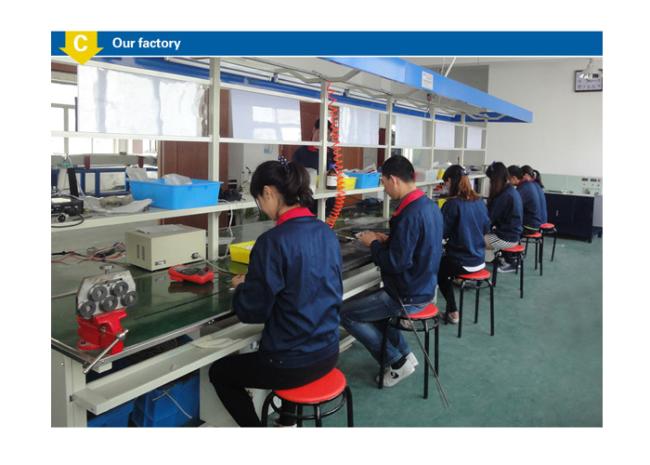

Wuhan Global Metal Engineering Co., Ltd (GME) professionally manufactures electric heaters, temperature sensors(thermocouples & RTDs), sacrificial anode, temperature controller and the related accessories primarily to industry since year 1995. After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries in the world.
RFQ
1.Q:Are you a factory or trading company?
A:GME cable is a cable manufacturing base in Wenzhou,China,with more than 500 workers.
2.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if checked available,Freight Charge normally will be on buyer’s account.
3.Q:How does your factory do regarding quality control?
A: Changcheng cable group has ISO9001 and ISO14004 certificate and strict QC system,we deliver only qualified cable.
4. Have you ever supplied cables to our country?
A: GME Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
5. What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables.
Any questions you have, please kindly contact me.
