3x3Mm Spring Thermocouple RTD Hot Runner Coil Heater with brass tube
3x3Mm Spring Thermocouple RTD Hot Runner Coil Heater with brass tube
Description:

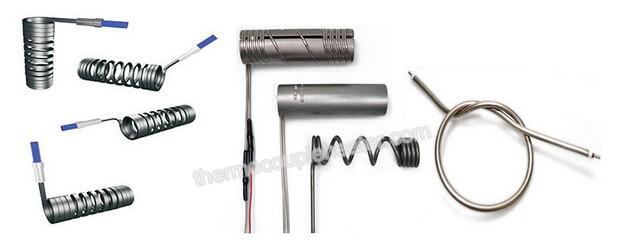

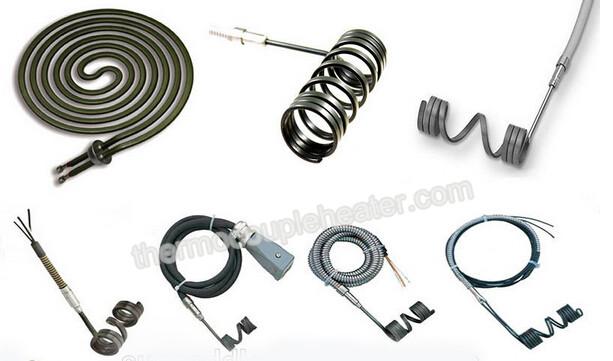

Coil heater:
110/120V,100W/150W/200W ,15.8/16/20mm and height 12.7mm,with k type thermocouple and ground wire, with 5 feet black kevlar sheath and fully black XLR male plug
12VDC,70W ,15.8/16/20mm and height 12.7mm,with k type thermocouple and ground wire, with 5 feet black kevlar sheath and fully black XLR male plug
The flat coil heater: 110/120V,100W/150W/200W ,8/9/10mm ID and 25/26mm OD ,with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug
12VDC, 70W ,8/9/10mm ID and 25/26mm OD ,with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug
Specification:
| Sectional area | 3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3 |
| Minimum ID | 8mm |
| Sheath Material | SS304,SS310 |
| Insulation Material | High Pure MgO |
| Resistance Wire | Cr20Ni80 |
| Maximum Sheath Temperature | 700°C |
| Die Electrical Strength | 800V A/C |
| Insulation | > 5 M W |
| Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm// Coil Length + 1mm |
| Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
| Voltage | 12V~380V |
| Wattage | 70W~1000W |
| Build-in thermocouple power | without or with J/K thermocouple |
| Sheath's length | 500/1000/1200/1500/2000mm |
| Available sheath | nylon,metal braided,fiberglass ,silicone rubber, kevlar |
| Sheath's color | standard is black,other color is also available |
| Connector | without or with 5 pin xlr,4 pin min xlr connector |
| Connector' color | silver or fully black
|
Application:
Precision formed junctions for high accuracy
Insulated for high temperatures
Field bendable to any configuration
Made from calibrated thermocouple wire
Moisture proof-insulation sealed in metal
Rapid response
Small in size
Hygienically clean
Weldable
Advantage:
1) Uniformly heating
2) Moisture-proof grade IP 65
3) Insulated sleeves connected inside (the same as GC)
4) Different cross sections for your choice: 2.2*4.2mm, Dia 1.8mm, 3.2*1.8mm, 3.0*3.0mm, 3.3*3.3mm, 4.0*2.0mm, 3.5*3.5mm, 4.0*4.0mm, 4.5*2.7mm
5) High insulation (＞500MΩ)
6) High resistance ＞1000V
Package:
Other Info
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.

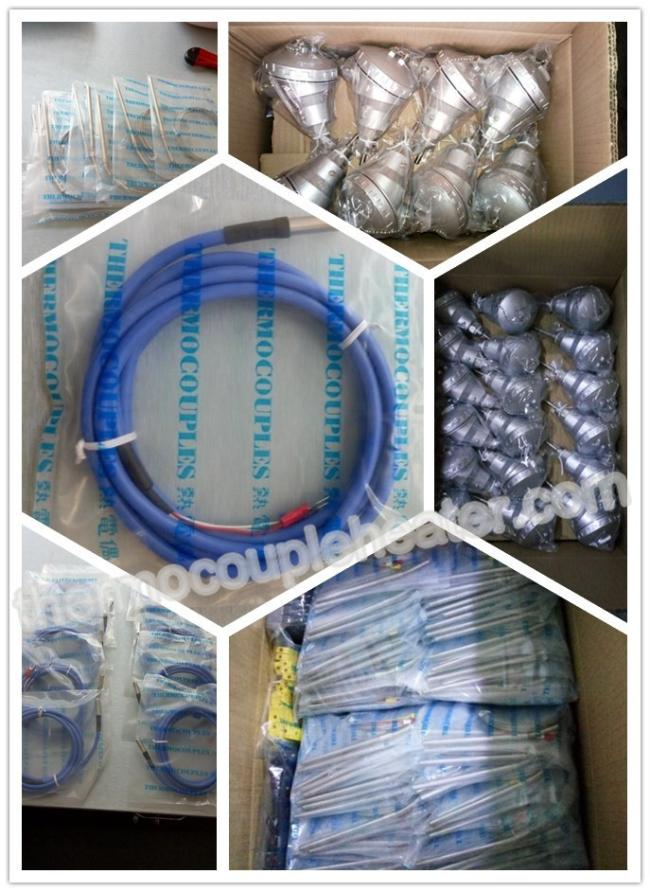

3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
