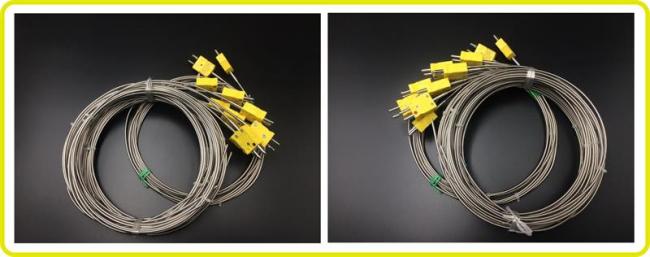

12-480V Electric RTD Thermocouple With Plugs , 3.0mm Mineral Insulated Cable
3.0mm Mineral Insulated Cable armoured thermocouple With Plugs in inclonel 600
Description:
1) Independent armored thermocouple means to connect temperature sensor to the measuring medium directly without any protection coating. This series is usually used circumstance which is not bad, no abrasion, no strong corrosion but need fast response. It is also suitable for coop with vibration for armored configuration.
2) It is disposable thermocouple.
Performances & characteristics
Fit for measuring the substances' surface temperatures.
Quick heat responsive period , accurate measurement.
simple structure , easy installation
3) A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit.
4) Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.
Specification:
Accuracy: Class I, Class II
Nominal diameter:Φ1
Bending diameter: R≥5D
Nominal pressure: normal pressure
Armoured Thermocouple K Type
1 Small order accepted
2 Short thermal response time
3 Convenient installation
4 economical
Main Thermocouples
1) Armored Thermocouple
Small diameter
Flexibility
Resistance to high pressure and vibration
Rapid thermal response
High reliability
2) Assembly Thermocouple
High temperature measuring,
Commonly used in Steel and Metallurgy industry
| Conductor material |
Calibration | Accuracy | |||
| Class l | Class ll | ||||
| Accuracy | Temperature range( °C ) | Accuracy | Temperature range( °C ) | ||
| NiCr-NiSi | K | ±1.5°C or ±0.4%|t| |
-40-1000 | ±2.5°C or ±0.75%|t| |
-40-1000 |
| NiCr Si-NiSi | N | -40-1100 | -40-1200 | ||
| NiCr-Konstantan | E | -40-800 | -40-800 | ||
| Fe-Konstantan | J | -40-750 | -40-750 | ||
| Cu-Konstantan | T | ±0.5°C or ±0.4%|t| |
-40-350 | ±1°C or 0.75%|t| |
-40-350 |
| PtRh10-Pt | S | ±1°C or ±[1+ ( t-1100 ) × 0.003] |
0-1600 | ±1.5°C or ±0.25%|t| |
0-1400 |
| PtRh13-Pt | R | 0-1600 | |||
| PtRh30-PtRh6 | B | —— | —— | 600-1700 | |
Application:
1) Thermocouples are widely used in science and industry; applications include temperature measurement for kilns,
2) gas turbine exhaust, diesel engines, and other industrial processes.
3) Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
