3*3 Industrial Injection Mould Hot Runner Coil Heaters With K J Thermocouple
3*3 Industrial Injection Mould Hot Runner Coil Heaters With K J Thermocouple
Description:

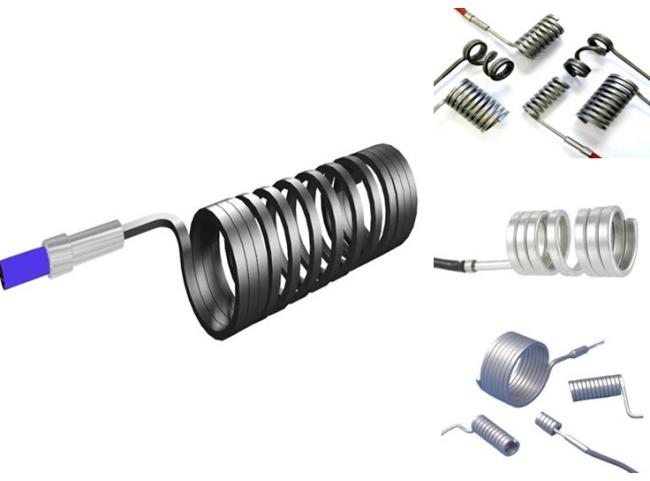

1) We have a top quality selection of nozzle coiled heaters that are available to buy online, here at GME. The length of our coiled heaters goes up to 2000mg, and they are designed to our customer’s requirements and specifications. See the list below to find out what applications our coiled heaters suit.
2) The applications the coiled heaters suit are: hot sprue bushings, sealing bars, dies, hot metal forming punches and many more. You’re spoilt for choice with our deluxe range of nozzle coiled heaters.
Specification:
- The following list describes our designs of the nozzle coiled heaters:
- PTFE leads with a Silicone Fibreglass Oversleeve – 1000mm long,
- A wide range of lengths are available up to 2000mm long (1900mm Heated)
- Wattages are available up to 1400W
- Standard Built-In Type ‘J’ Thermocouple.
- 3.35mm Square section Profile.
- Clampband optional
- Available from stock as straight lengths. Coiled to required diameters and length
| Heat intensity | Not exceeding 30Wcm2 (advisable) |
| Power | Depends on the dimension |
| Escape of current (when cold) | <=0.1mA a 242 v. |
| Insulation (when cold) | 5 Min Ohmios 500 Watts minimum |
| Dielectric strength | 1500v. 1/seg |
| Working temperature | 750ºG max. |
| Tolerance of length | +/-1.5% |
| Tolerance of diameter | -0.01 a -0.06 m/m |
| Tolerance of cut of connexion | +/-15 mlm |
| Power tolerance (w) | 5 % - 10 % |
| Cold areas |
Depends on length and diameter 5-25mm |
Application:
- Caustic Cyanide used in gold processing
- Hot water storage
- Asphalt Wax
- Caustic solutions Detergent
- Sterilizing equipment
- Heating oils
- Plastic processing&packaging machinery
- Ovens&dryers
- Dies&Tools
- Water& Oil heating appliances
- Vending machines
- Kitchen equipments
- Medical equipments
