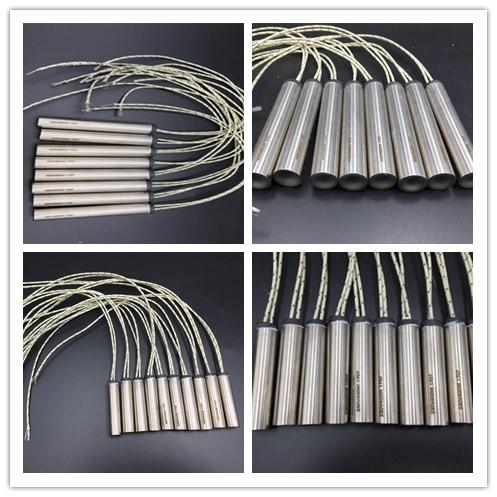

Electric high density heating tube cartridge heater for plastic injection moulds
Description:

1) Electric mini heating element cartridge heater use metal tube as a sheath (including stainless steel, copper tube), which utilize resistance wiring close to the heater sheath for heating transfer ,isolated by a thin layer of compacted MgO insulation.
2) For this Electric mini heating element cartridge heater , customers can also specify lead length and choose from a variety of lead options. Leads can be insulated with fiberglass or PTFE or protected by stainless steel braid or hose.
3) Electric mini heating element cartridge heater also have an option many others lack: the ability to have an internal J or K-type thermocouple located near the tip of the heater

Single-Ended tubular heater covering: SUS304/SUS316L/Incoloy 800/Titanium etc.
Insulation: Compacted magnesium Oxide
Heating conductor: NiCr8020
Voltage: 6V to 415v
Power density: Maxi 50W/CM2
Temperature resistance: 800 centi degree
Size tolerance: Less than 0.6mm
Thermocouple: J type, K type etc.


Application:

• Mold die and platen heating
• Seal bars used in packaging equipment
• Plastic Processing
• Injection and Blowing Moulding
• Extruders
• Foundries
• For Fastening of turbine bolts
