Customized Industry Heating Element Electrical Coil Hot Runner Heater For Moulds

Price Negotiable

Price: Negotiable

MOQ: 50pcs

Delivery Time: 7~10 working days

Brand: GME

Product Description

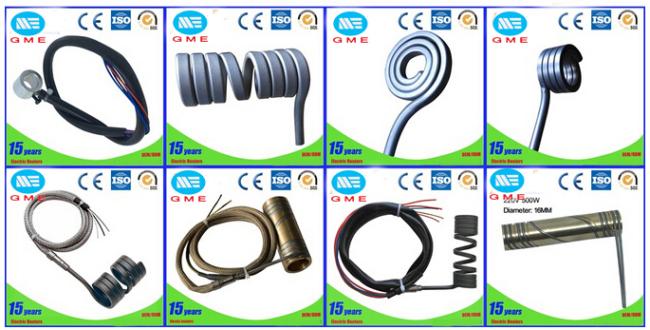

Customized Industry Heating Element Electrical Coil hot runner Heater for moulds

Description:

1) Hot runner heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape.

2) Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.

Specification:

1. Standard sizes available with various cross section
2. Various Watt Density options available.
3. Robust Design with Choice of Terminal Exits
4. Available with built in Thermocouple
5. Designed for even heat profile.
6. Precision fit on Hot Runner Nozzles & Manifolds.
7. Highly Non-corrosive.
8. Maximum heat transfer due to more contact area.
9. Advanced Thermal Engineering.

Sheath Material	MGO for Electrical Coil Heater
Resistance Wire	NI Cr 80-20
Maximum Sheath Temperature	700o
Die electric Strength	800 VA/C
Insulation	>5 M W
Thermocouple	J Type (Standard) or K Type
Length Tolerance (Straight)	5%
Wattage Tolerance	10% (5% Available Upon Request)
Resistance Tolerance	10% (5% Available Upon Request)
Unheated Length	35 mm Standard
Dimension Tolerance	Coil I.D. 0.1 to 0.2 mm
