Mould Ceramic Band Heater Thermocouple RTD With SUS304 Sheath

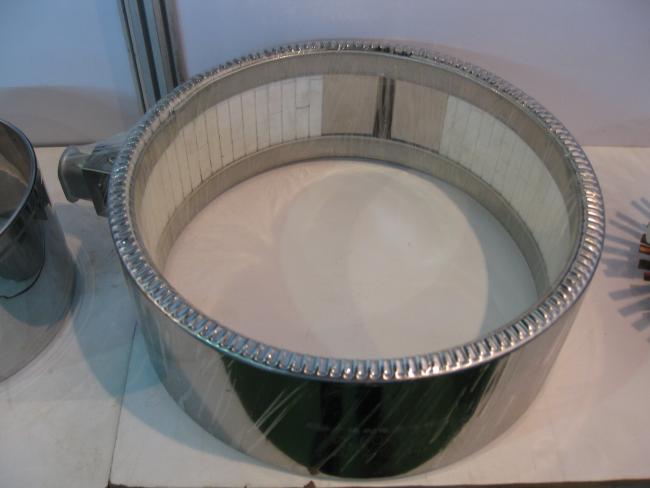

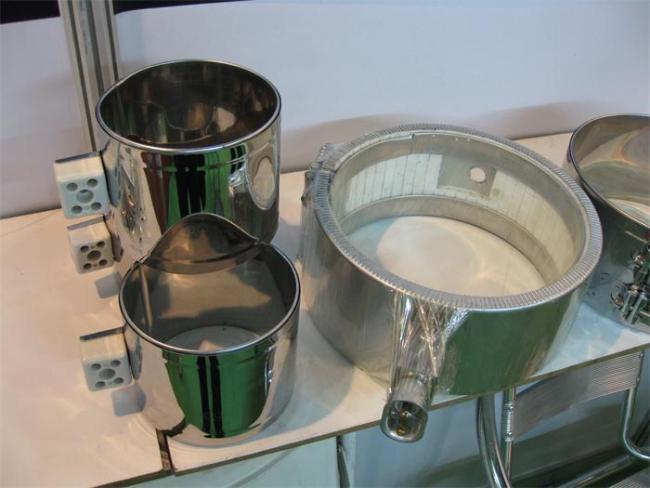

Mould Ceramic Band Heater With SUS304 Sheath
Description:
Ceramic Band Heaters were developed to meet industrial requirements for high temperature long lasting heaters. They are ideally suited to comply with today's new resins, which calls for ever-increasing process temperatures.
Ceramic Band Heaters design consist of a helically wound resistance coil made from 80/20 nichrome wire, evenly stretched and precisely strung through a specially designed ceramic insulating bricks forming a flexible heating mat. The ceramic heating mat along with ceramic fiber insulation is placed on a stainless steel housing made with serrated edges providing maximum flexibility for easy installation.
Applications:
- For Melting the plastic granules prior to molding. Extrusion head / Injection Unit
- Injection Moulding
- Blow Moulding
- Extrusions
- Pipe and drum heating
- Ideal for use on Injection and extrusion barrels (when processing low, medium and high temperature resins)
Features:
- Thermal Insulation
- Even heat distribution
- Saves Energy
- Minimum Heat Loss
- Easy Installation & removal
- Longer Heater Life
- Can be manufactured acc. to your specification
- Various Types of Construction & Terminations
Specifications:
| Resistance | + 10% -5% | Overall Thickness | 15 mm |
| Wattage | +5% -10% | Minimum Dia. | 38 mm |
| Maximum Watt Density | 8 watts / sq. cm. | Minimum Width | 25 mm |
| Voltage | 220V AC to 480V AC | Width - Normal | multiple of 15 + 6mm |
| Maximum Temp. | 800° C | Std. gap between edges | 5 to 10 mm |
