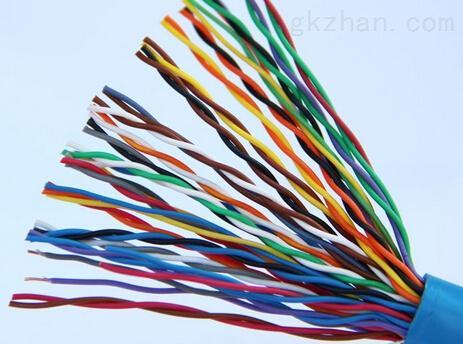

Thermocouple Extention/Compensating Used to extend thermocouple circuits from the sensor to reference unit, Generally manufactured with conductor sizes 16, 18 & 20 AWG and conforming to IS: 8784, BS: 4937, IEC-584, ANSI: MC: 96.1, DIN, JIS

Conductor: Solid/stranded
Type: KX, VX, TX, JX, EX, SX/RX
Insulation: PVC –HR; PE, LSZH
Shielding: Individual & overall or overall screen only by Al-mylar tape/copper tape/copper wire braid
Inner sheath: PVC –HR/FR/FRLS; PE, LSZH
Armour (for armoured cables): Galvanized steel round wire/strip
Outer sheath: PVC –HR/FR/FRLS; PE, LSZH

Thermocouple Extention/Compensating Cables. The conductors used for these cables are required to have similar thermoelectric (emf) properties as that to the thermocouple used for sensing the temperature. The cables manufactured as per IS:8784, ANSI-96.1, B.S. And customers specification.

Range of Thermocouple Extention/Compensating Cables
