Hot Runner Straight Enail Coil Heaters , Electric Tube Heaters With J Type Thermocouple

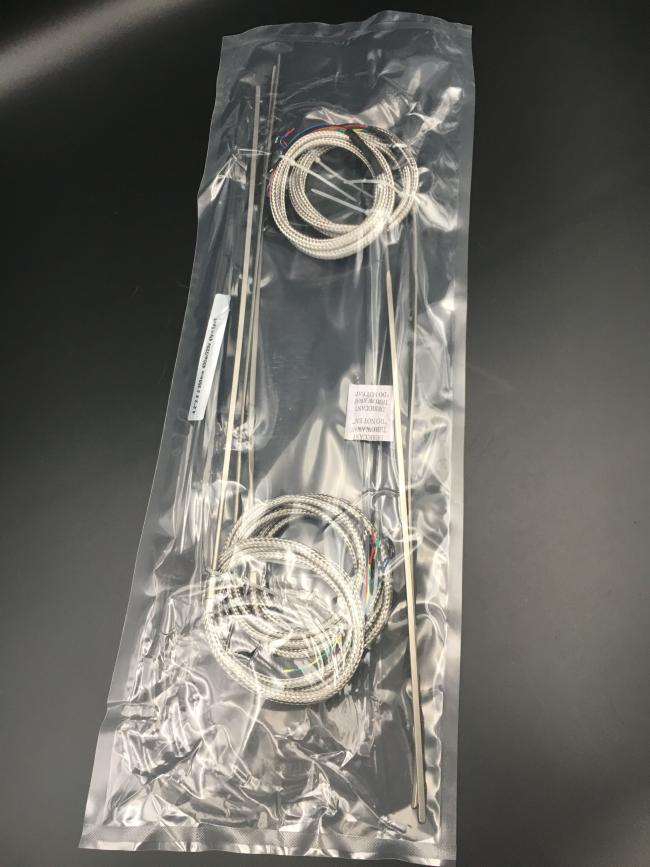

                   Hot runner Straight enail coil heater with J type thermocouple

Product Description:

Coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with Mgo powder and compacted for faster and efficent heat transfer.The heaters are annealed to acquire malleability for bening into any shape.Hot runner heaters with built in thermocouple are also available.Hot runner bushes are produced with hot runner hetaers of differnt cross section with inner brass and outer stainless steel cover.It's high working temperature,fast heating,uniform heating precision,long service life,can be automatically controlled area,high thermal conduction,while internal heating material damage,external can be reuses.

Technical Detail:

1. Use condiction:environment temperature:-20~+60C,Relative temperature<95%

2. Leakage current: <0.5MA

3. Insulation resistance: ≥5MO

4. Groud resistance: <0.1O

5. Voltage resistance: no electric breakdown for 1 minute under 1500V

6. Temperature endurance: 100-1200 ℃

Application:

1. Moulds&dies

2. Manifolds

3. Hot runner nozzles and spruce bushes

4. Packaging machineries

5. Injection moulding machines nozzle
