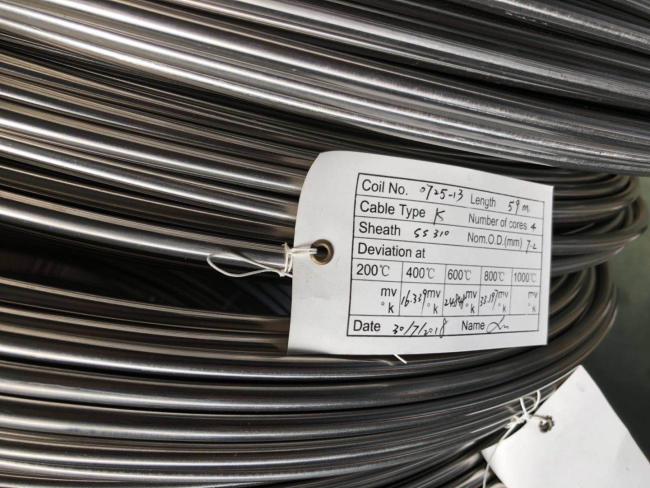

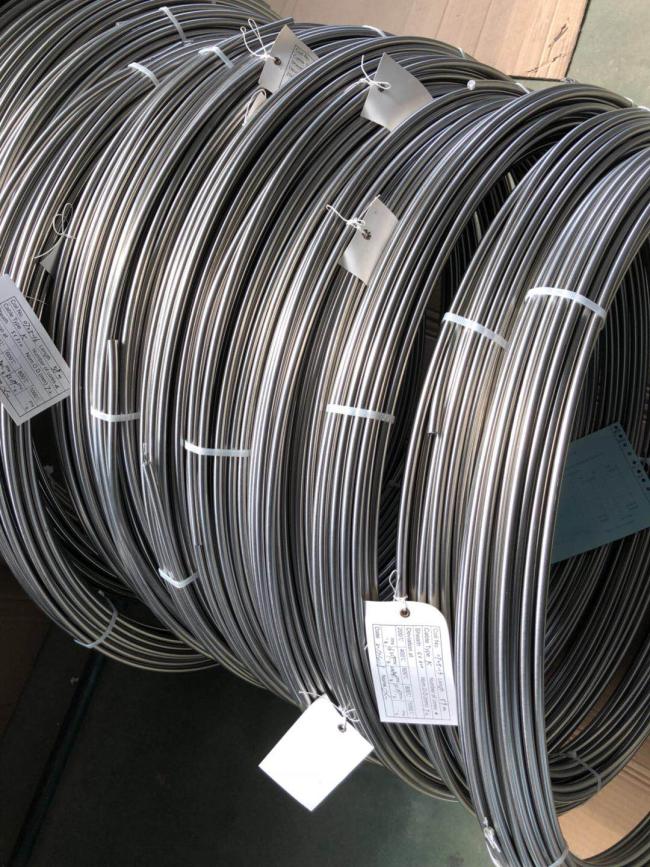

type K 4 core mineral insulate thermocouple cable

Product Details:

Name: Mineral Insulated Cable

Type: K, N, E, J, T

Conductor material: NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Insulator: 99.6% high purity MgO

Core number: 2, 4, 6

Sheath material: SS321(SS304), SS316, SS310, INCL600,601, Nicrobell,SS446,SS347,800,800H,825,INCONEL601,INCONEL625,GH4145 and GH3128

Dia(mm): from 0.25mm to 12.7mm

Application: connecting with thermocouple and instrument machine

MOQ: 1000m

Electric property:

Resistance value allowance:±10%

Dielectric property:heating cable pressure resist:1200V AC/1min

Insulation resistance:end product test:100MΩ/500VDC

Sheath continuity:all the heating cable submerged in the water 12 hours then test the insulation resistance,the value should be 50M/500VDC at least.
