High Temperature Resistance Cartridge Immersion Heater For Injection Molding Machine
High temperature resistance Cartridge Heater for Injection Molding Machine
Description:

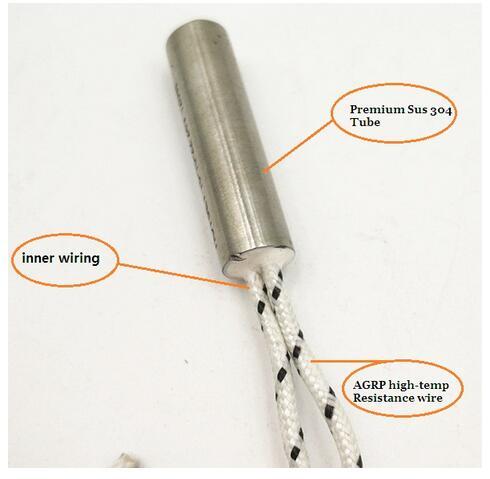

1. Cartridge heater consists of a cylindrical stainless steel tube and thus prevents itself from corrosion. The watt density can reach 25 W/cm2and the operating temperature can go up to 800°C (1472°F)
2.The cartridge heater is filled with magnesium oxide and compressed to avoid short-circuit. There is a heating wire inside which is wound into a ceramic core. The number of coils varies depending on the power.
3. Various cartridge heaters are available. We develop and manufacture cartridge heaters according to your special demands.
Specification:
GME Low Power 24v 80w Cartridge Heaters are made of crimped-on or swaged-in construction that consists in a resistance wire wound around a high-quality MgO core that is centered in a stainless steel casing.
| Diameter | 3mm to 30mm, etc. |
| Length | Customized |
| Wire length | Customized |
| Leads type | Direct line, SUS 304 braided, metal hose, etc. |
| Voltage Supply | 12V to a maximum of 480V |
| Total capacity | customized |
| Resistance Tolerance | +10% - 5% (closer tolerances are available upon special request) |
| Heating length | Customized |
| Sheath Material | SUS 304/316/321 Incoloy 840 |
| Insulation material | Magnesium Oxide Powder |
| Maximum Temperature | 800 °C |
Application:
- Food processing
- Plastic moulds
- Medical equipment
- Hot stamping
- Liquid immersion
- Packaging equipment
- Labeling & Sealing
- Dies & platens
- Injection molding
- Nuclear industry
- Car industry
