100W 110V Electric Cartridge Heater With Angle Lead Wire 203mm For Plastic Machinery
100W 110V electric cartridge heater with angle lead wire 203mm for plastic machinery
Description:

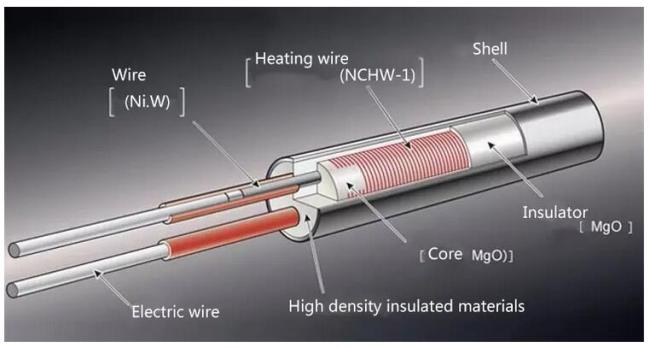

Cartridge heaters with angle lead wire are cylindrical electical heating elements. Mostly used for heating up solids such as injection presses heating plates or various tools, they can also be used for heating up water of gases under certain conditions. Widely used for manufacturig plastic and rubber parts in the car industry or in the food processing industry, etc they are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries
Specification:
2. Tube Material: SS304; SS316; SS321; NICOLOY800 etc.
3. Insulation Material: High-purity Mgo.
4. Resistance wire element: Ni-Cr or FeCr.
5. Lead Connection Option: Crimped or Swaged leads.
6. Lead and type of connection leads 10" Fiberglass Standard (Wire options: , silicone high temperature frberglass)..
|
Item Name
|
cartridge heater 24v 30w molding heating rod
|
|
Resistance heating wire
|
Ni-Cr or FeCr
|
|
Sheath
|
Stainless steel 304,321,316, Incoloy 800, Incoloy 840,
|
|
Insulation
|
High-purity Mgo
|
|
Maximum temperature
|
800 degree Celsius
|
|
Voltages available
|
380V,240V, 220V,110V,36V,24V or 12V
|
|
Power available
|
according to your requirement
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Thermocouple
|
K type or J type
|
|
Lead wire
|
300mm length; Different type of wire is available
|
Application:
1.Injection moulding - Internal heating of nozzles
2.Hot runner systems - Heating of manifolds
3.Packaging industry - Heating of cutting bars, hot stamps
4.Laboratories - Heating of analytical equipment
5.Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
6.Telecommunications: Deicing, Enclosure Heater
7.Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
8.Food Service: Steamers, Dish Washers,
9.Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
