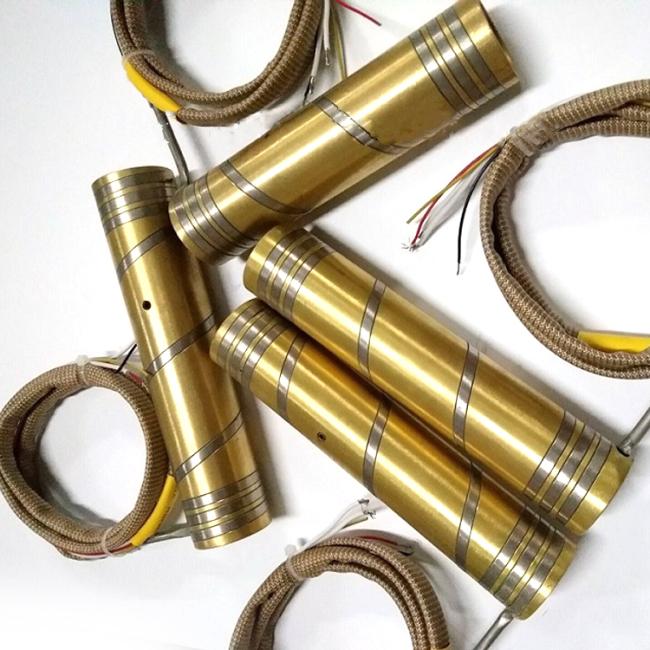

380V 3000W Hot Runner Coil Heater For Blow Molding Machine
High quality Hot runner heater coil heater with K, J thermocouple
Description:
Hot runner nozzle heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.
Specification:
1.Spring ring heating specification: heating section: 2.2X4.2 3X3 3.4X3.4 3.5X3.5 4X4mm.
2. Heating coil ID :10mm ~ 38mm, heating height of ring: 40mm ~200mm.
3. Voltage: 220V-380V, wattages: 200W- 3000W.
4. Built-in thermocuple power:with or without J/K thermocouple, length of lead wire as 500mm 1000m 1200mm 1500mm or 2000mm.
5. Continuous Operating Temperatures to 1200℉.
Intermittent Operating Temperatures to 1500℉.
6. Spring heating ring advantages: high working temperature, fast heating, long service life, convenient installation.
| Section area | 3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4, 4.20 x 2.20, 4.20 x 2.50 |
| Sheath Material | Cr Ni-Steel, SS304, SS310 |
| Insulation Material | High Pure MgO |
| Heating coil ID | 10mm-38mm |
| Voltage | 12-380V |
| Wattage | 70W-3000W |
| Build-in thermocouple power | With or without J/K thermocouple |
| Available sheath | nylon,metal braided,fiberglass ,silicone rubber, kevlar |
| Sheath's color | standard is black,other color is also available |
| Resistance Wire | Ni Cr 80-20 |
| Maximum Sheath Temperature | 700°C |
| Die Electrical Strength | 800V A/C |
| Insulation | >5 M W |
| Thermocouple | J type (Standard) or K type |
| Length Tolerance (Straight) | 5% |
| Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
| Resistance Tolerance | + 10% (+ 5% Available Upon Request) |
| Unheated Length | 35mm (Standard) |
| Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm |
| Coil Length + 1mm |
Application:
Plastic Die Applications;
Blow Molding Machine;
Extrusion;
Hot Runner Systems Injection Molding:
Thermoforming.
