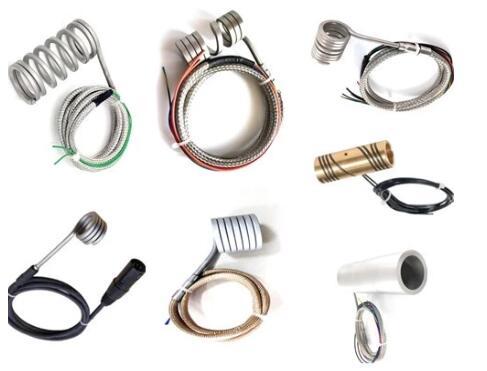

MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath
Brass Coil Heaters Brass Coil Heater MICC Thermocouple Brass Hot Runner Coil Heaters
Description:
Hot runner Coil Heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder. It has round, squre and flat sections. The surface treatment can be polishing and sand blasting.And it can be connected with K, J, or E type temperature control thermocouples. Spring coil heater is widely used in heating engineering, mold, plastic industry, extruder and hot nozzle, etc.
Specification:
1. Maximum Sheath Temperature: 700°C
2. Inner Diameter: 8-38mm( + 0.05mm)
Square: 3x3mm;3.3x3.3mm,4x4mm,
Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm
6. Available Sheath: nylon,metal braided,fiberglass ,silicone rubber, kevlar
Application:
* Injection moulding machine nozzle
* Hot Runner Nozzles & Bushings
* Packaging machinery
* Hot runner Injection moulds
* Injection & Blow Moulding Machine Nozzles
* PET preform & Thin wall container Moulds
* Hot runner Manifolds
