CE Fiber Cement Board Production Line Corrugated Roof Fiber Sheet Making Machine
corrugated roof fiber sheet making machine iron board production line
Fiber Cement Board Production Line,Fiber Cement Board Machinery
|
Advantages |
||
|
Number |
Item |
Content |
|
1 |
Low cost |
Low labour and material costs |
|
2 |
Long life |
Up to 30 years |
|
3 |
Recycling use |
Reused for more than 10 times |
|
4 |
Flexible layout |
Layout adjusted according to your requirement |
|
5 |
Environment protection |
Environment-friendly materials used |
|
6 |
Safe & Stable steel structure |
Earthquake proof & Wind resistance |
Calcium silicate board production based on Industry Standard JC/T564-2008_"Fiber reinforced calcium silicate board".
Item |
Unit |
Standard Fiber Reinforced Calcium Silicate Board |
| Density | g/cm 3 | <1.3 |
| Anti-bend strength | MPa | >9 |
| Heat conduction modulus | w/m.k | <0.29 |
| Anti-impact strength | kJ/mm 2 | >2.0 |
| Pull force of screw | N/mm | >75 |
| Dry shrinkage rate | % | <0.2 |
| Non-burn performance | In accordance with standard GB8624 First Class Non-burn Material |
| , but no water drop | |||||
| High density | 1.4≤ D≤ 1.7 | ≤ 28 | __ |
Basic technical data
1. Product name: Non-asbestos fiber cement board
2. Standard: In conformity with National Building Material Industry Standard JC/T 412.1-2006. < Non-asbestos fiber cement board>
3. Raw material: Cement, reinforced fiber, coal ash additives
4. Product specification: ( L*W*T) 2440× 1220× 6-30mm
5. Capacity: 3 million -5million /year( calculate by 2440× 1220× 6mm board, 24 working hours continous production )
6. Production organization arrangement: 1) 3 shifts per day, 8 hours per shift, 300working days per year 2)total wokers need for this line is 52 staff, including 2 management staff, 2 techincal staff and 48 workers...

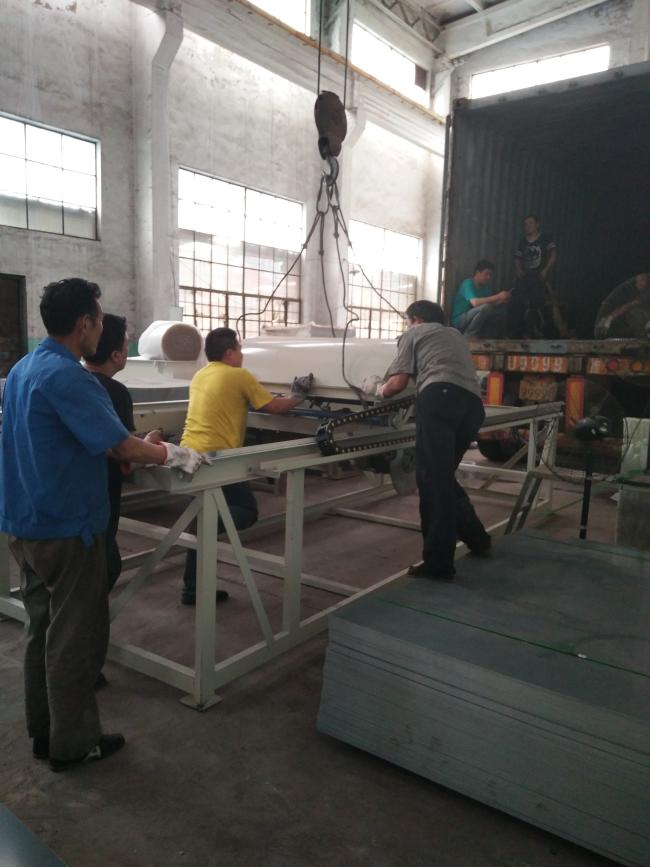

Production site
Machine operation
1. Raw material
Composition: Calcium silicate board (face panel) + Cement and EPS (core) + Other accessories
2. Product size (standard size)
1800/2440/2800/3000 mm *610mm *(90/120/150/180/200) mm ( the thickness can be adjusted, the length can be made according to demand )
3. machine size
3500mm (length)*2300(width)mm*1300(high)mm
Advantages:
· Light weight
· Good sound insulated
· Heat Insulated
· Waterproof/ Water fast : Near about 0% moisture absorption.
· Fire proof.
· Energy Efficient
· Environmental, Ecofriendly.
· Civilized and convenient construction
· High Intensity without deformation.
