High Temp Furnace , High Temperature Ovens Powder Poated 1200 Deg C

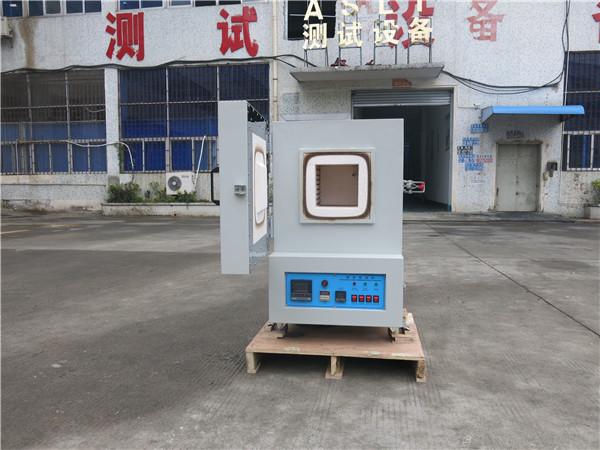

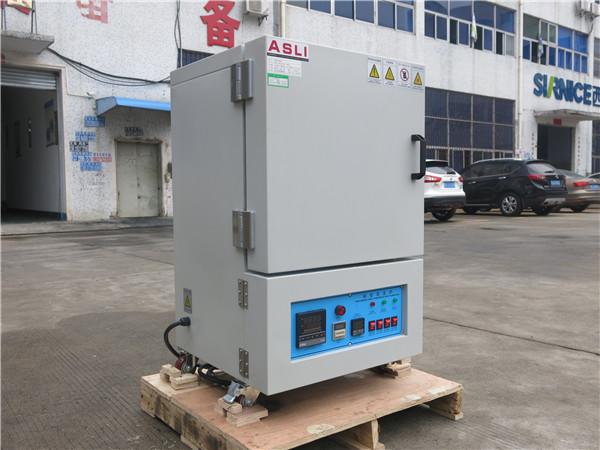

High Temperature Furnace
Application:
High Temperature Furnace/ Muffle Furnace is used to determine ash content of material like Polymer, Polyethylene,Polyester, Nylon, Cork, or any other material.
Features:
1. It has high-quality refractory materials and forming fiber module or lightweight ceramic.
2. Micro PID+SSR+ Timer, precise & reliable control
3. There are vents on rear wall, and it can be connected with fan or catalytic device.
4. It has grounding leakage circuit breakers, and can protect personal safety
Technical Parameters:
|
Model |
RFD-15 |
RFD-20 |
RFD-30 |
RFD-40 |
|
Internal Dimension WxHxD (mm) |
150x150x150 |
200x200x200 |
300x300x300 |
400x400x400 |
|
External Dimension WxHxD (mm) |
450x700x500 |
500x750x500 |
650x900x600 |
650x900x700 |
|
Material |
Inner box is high temperature resistant ceramic plate; out shell is 1.2t steel plate paint power coating |
|||
|
Temperature Range |
RT+5ºC~1300ºC |
|||
|
Accuracy |
±3.0ºC % |
|||
|
Control Method |
Micro computer PID+ SSR+ Timer |
|||
|
Power |
AC220V |
|||
