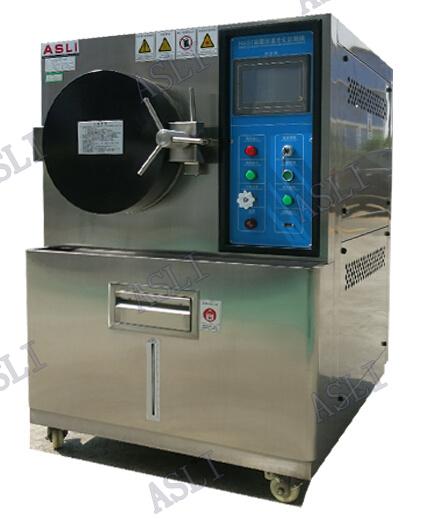

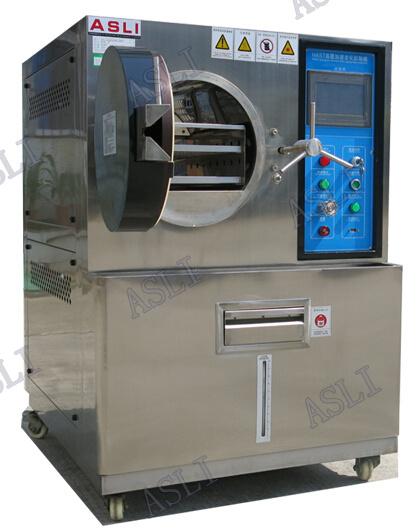

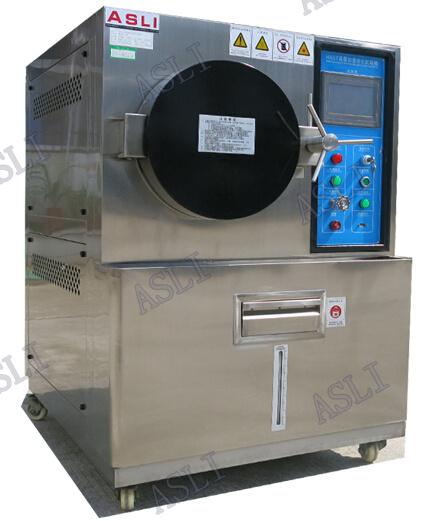

Pressure Accelerated Aging Test Hast Chamber 70 to100%RH with High Temperature Oven

application:

HAST accelerated aging chamber is widely applied to the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.


HAST accelerated aging chamber features:

1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5.Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6.Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7.A integrated silica gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution

HAST accelerated aging chamber technical parameters:

Model	HAST - 25	HAST - 35		HAST - 45		HAST - 55		HAST - 65
Internal Dimension ΦxD (mm)	300x250	350x450		450x550		550x650		650x750
External Dimension ΦxD (mm)	850x1300x900	900x1350x900		1000x1480x1000		1150x1650x1200		1300x1800x1350
Steam Temperature Range	Steam Temperature Range: 100℃~135℃, (143℃ is optional)
Relative Pressure/ Absolute Pressure	Relative pressure: display values indicated on the pressure gauge Absolute pressure: pressure gauge value adds 100 Kpa (The actual value in the inner box)
Comparison Table of Temperature, Humidity , Pressure
Steam Humidity	70~100％R.H. steam humidity adjustable
Steam Pressure(Absolute Pressure)	101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard)
Recursive Device	Steam in forced-circulation
Safety Protective Device	Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function )
Accessories	Two layers stainless steel plate
Equipment Capacity(L)	17		43		87		155		250
Power	AC 220V(±10%), 1∮ 3 Lines ,50/60HZ; AC 380 V(±10%) ,3∮ 5 Lines,50/60HZ
