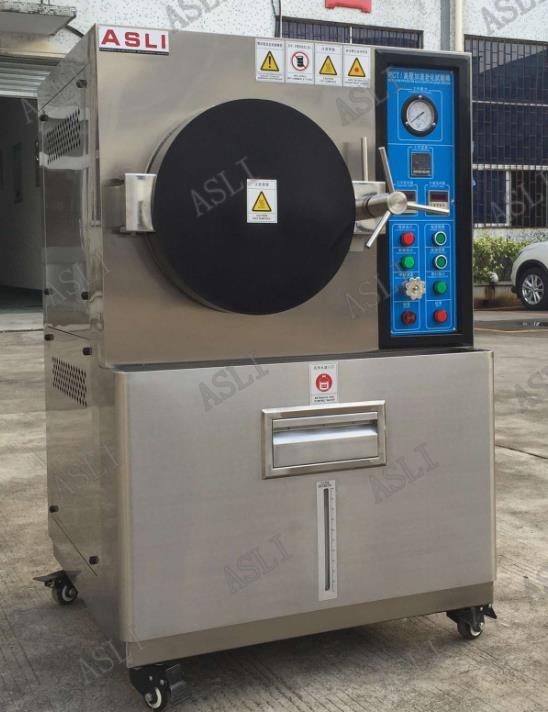

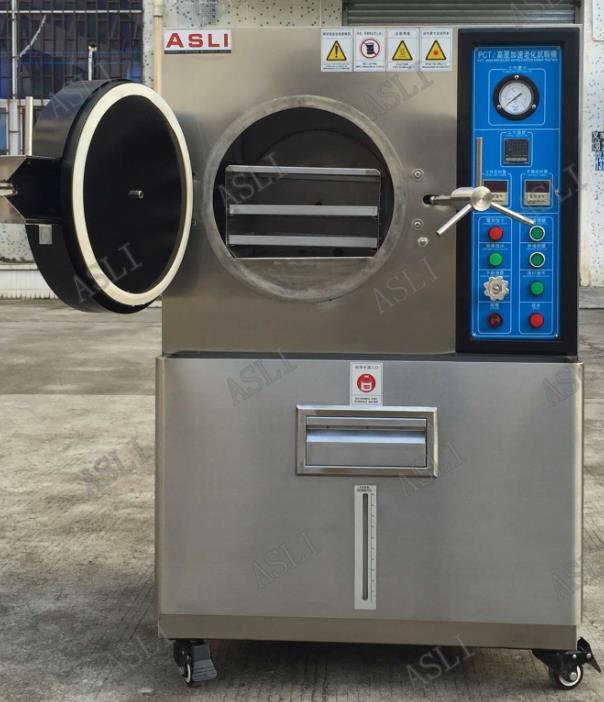

SUS304 Stainless Steel 1-3kg High Accuracy Pressure Cooker Test Chamber
SUS304 Stainless Steel Compressors Climate High and Low Pressure Accelerated Aging Testing Oven
Safety device about accelerated weathering chamber:
1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.
3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.
Electrical Control System with pct chamber:
Touch type color LCD display, Both Chinese and English language available
Original imported 5 inch LCD display, with 30 programs, each 540h59min, able for segmentation settings, and with multiple PID control function .
Specification of accelerated aging chamber:
Accuracy: Temperature ±0.1℃＋1digit ;Humidity ±1%R.H＋1digit ,
Pressure ±0.1%R.H＋1digit
Resolution: Temperature±0.01℃;Humidity±0.1%R.H.Pressure : 0.1㎏/cm2
With upper and lower limits standby and alarm function.
Temperature humidity input sensor:(RTD)PT-100Ω×2(Platinum resistance).
Pressure input signal:4～20ma.
9groups P.I.D control parameter setting, P.I.D auto calculating, temp& humidity wet and dry bulb automatic calculation.
Technology Parameter about the aging chamber manufacturer:
| Model | PCT - 25 | PCT - 35 | PCT - 45 | PCT - 55 | PCT - 65 | |
| Internal Dimension Φ×D (mm) | 300×250 | 350×450 | 450×550 | 550×650 | 650×750 | |
| External Dimension Φ×D (mm) | 750×1200×800 | 800×1250×800 | 900×1380×900 | 1050×1550×1100 | 1200×1700×1250 | |
|
Temperature Range of Saturated Steam (Operating temperature) |
(Temperature Range of Saturated Steam:100°C~135°C) , Temperature Range: 120°C,100Kpa/ 133°C 200 Kpa;(143°C is special order) |
|||||
| Relative Pressure/ Absolute Pressure |
Relative pressure: display values indicated on the pressure gauge Absolute pressure: Value that add 100 Kpa based on display values indicated on the pressure gauge (The actual value in the inner box) |
|||||
|
|
||||||
| Humidity of Saturated Steam | 100%RH saturation steam humidity | |||||
| Steam Pressure(Absolute Pressure) | 101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) | |||||
| Recursive Device | Steam Natural convection circulation | |||||
| Safety Protective Devise |
Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) |
|||||
| Accessories | Two layers stainless steel plate | |||||
| Equipment Capacity(L) | 17 | 43 | 87 | 155 | 250 | |
| Power | AC 220V(±10%), 1& 3 Lines ,50/60HZ ; | |||||
| Model | HAST - 25 | HAST - 35 | HAST - 45 | HAST - 55 | HAST - 65 |
|
Internal Dimension: Φ×D (mm) |
300×250 | 350×450 | 450×550 | 550×650 | 650×750 |
|
External Dimension Φ×D (mm) |
850×1300×900 | 900×1350×900 | 1000×1480×1000 | 1150×1650×1200 | 1300×1800×1350 |
| Steam Temperature Range | Steam Temperature Range: 100°C~135°C, (143°C is optional) | ||||
| Relative Pressure/ Absolute Pressure |
Relative pressure: display values indicated on the pressure gauge pressure gauge (The actual value in the inner box) |
||||
| Steam Humidity | 70~100%R.H. steam humidity adjustable | ||||
|
Steam Pressure (Absolute Pressure) |
101.3Kpa +0.0Kg/cm2~2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) | ||||
| Recursive Device | Steam in forced-circulation | ||||
|
Safety Protective Devise |
Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) |
||||
| Accessories | Two layers stainless steel plate | ||||
| Equipment Capacity(L) | 17 | 43 | 87 | 155 | 250 |
| Powder | AC220V, 1Φ 3 Lines ,50/60HZ; AC380V ,3 Φ 5 Lines,50/60HZ | ||||
If you have any question about the aging chamber manufacturer , please kindly contact with us, thank you .
