GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber 1150x500x500mm
Price:
Negotiation
MOQ:
1 set
Delivery Time:
20workdays
Brand:
ASLI
Product Description
GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber
Application:
GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber is simulated sunlight damage on the material and product test, widely used in the evaluation of material climate resistant.
Technical Parameters:
| Model | UV-290 | |
| Internal Dimension WxHxD (mm) | 1150x500x500 | |
| External Dimension WxHxD (mm) | 1400x1600x750 | |
| Applicable Standard | GB/T16422,GB/T5170.9 | |
| Temperature Range | R.T.+15℃~+70℃ | |
| Temperature Fluctuation | ±0.5℃ | |
| Humidity Range | ≥95%R.H. | |
| Environmental Temperature for Use | +5℃~+35℃ | |
| Test Light Source | UVA,UVB UV light | |
| Wave Length of Test light Source (nm) | 280~400 | |
| Center Distance between Sample and Tube (mm) | 50±2 | |
| Center Distance Between Tubes (mm) | 75±2 | |
| Material of Internal Case | Stainless steel with sanding polish | |
| Material of External Case | Stainless steel with sanding polish or painting coated | |
| Heating and Humidifier | Electric-heat type steam generator ,heating and humidification | |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type | |
| Input | Black panel thermometer.PT-100 Sensor | |
| Standard Configuration | 1 pc Stainless steel shelves | |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection | |
| Power | AC220V 1 phase 3 lines, 50HZ | |

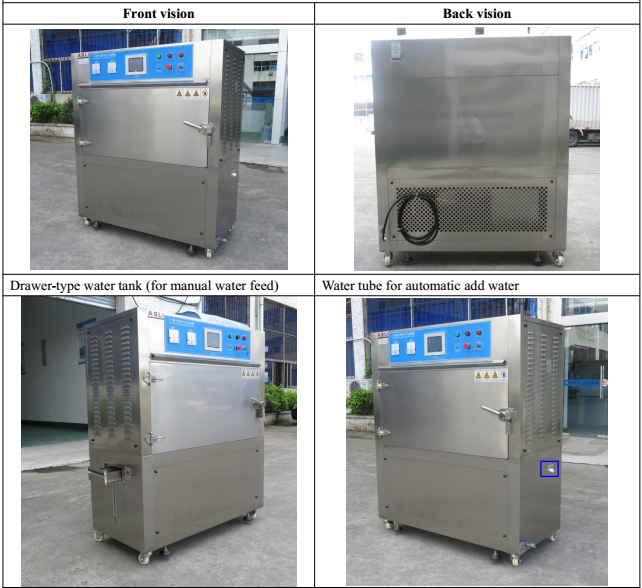

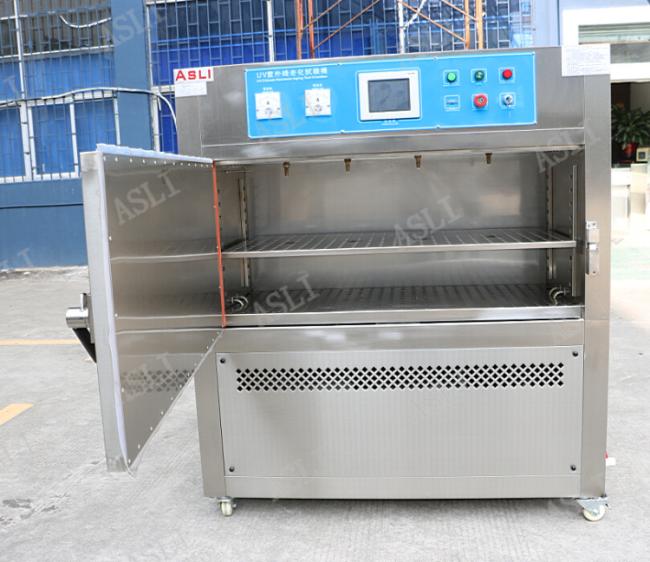

GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber Pictures:
Company Profile:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine.GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber is our star products , and we had obtained the CE certification for this machine .
