5% Concentration NaCl Salt Fog Corrosion Test Chamber W1200xH500xD800mm
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
20workdays
Brand:
ASLI
Product Description
5% concentration of NaCl Salt Fog Resistance Testing Chamber
Product Description
5% concentration of NaCl Salt Fog Resistance Testing Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
5% concentration of NaCl Salt Fog Resistance Testing Chamber Technical Parameters
| Model | SH-60 | SH-90 | SH-120 | SH-160 | SH-200 | ||||
| Internal Dimension WxHxD (mm) | 600x400x450 | 900x500x600 | 1200x500x800 | 1600x500x800 | 2000x500x800 | ||||
| External Dimension WxHxD (mm) | 1100x600x1200 | 1400x950x1200 | 1900x1300x1400 | 2300x1300x1400 | 2700x1500x1500 | ||||
| Lab Temperature | Saline test (NSS ACSS) 35±1 °C ;Corrosion Test (CASS)50±1 °C | ||||||||
| Pressure Bucket Temperature | Saline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS)63±1 °C | ||||||||
| Lab Capacity(L) | 108 | 270 | 480 | 640 | 800 | ||||
| Saline Capacity(L) | 15 | 25 | 40 | 40 | 40 | ||||
| Saline Concentration | 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O | ||||||||
| Compressed Air Pressure(Kgf) | 1.0~6.0 | ||||||||
| Spray Volume | 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) | ||||||||
| Spray Form | Continuous Spraying or Programmable Spraying | ||||||||
| Power | AC220V 1 ph 3 lines15A | ||||||||
| Weight(Kg) | 65 | 80 | 120 | 160 | 200 | ||||

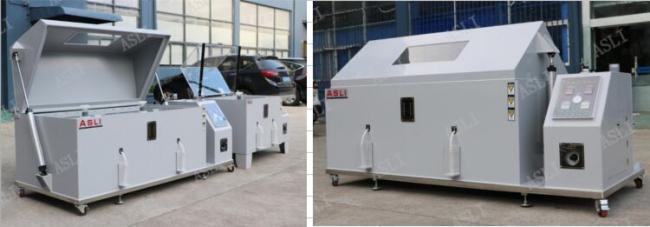

5% concentration of NaCl Salt Fog Resistance Testing Chamber Pictures
Packaging & Shipping
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
