IEC60068-2-78 Laboratory Equipment Thermal Shock Test Chamber Easy to Operate
Name | Thermal Shock Test Chamber | ||
Model | TS-150(A~C) | TS-252(A~C) | TS-450(A~C) |
Internal Dimension WxHxD (mm) | 600x500x500 | 700x600x600 | 800x750x750 |
External Dimension WxHxD (mm) | 1600x2000x1700 | 1700x2100x1750 | 1800x2200x1900 |
Temperature Range of Testing zone |
Type A:-40 ℃~+150℃ ( 200℃ is Optional) | Type B:-55℃ ~+150℃ ( 200℃ is Optional ) | Type C:-65℃ ~+150℃ ( 200℃ is Optional) |
High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional); Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC | |||
Temperature Recovery Time / Conversion Time | ≤5min/≤5sec | ||
Mechanics | P.I.D+S.S.R+ Micro-computer balanced temperature control system | ||
Accessories | viewing window(special order) | ||
Compressor | French 'Tecumseh' Brand, Germany Bizer Brand | ||
Laboratory Equipment Thermal Shock Chamber Features:
1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static mode.

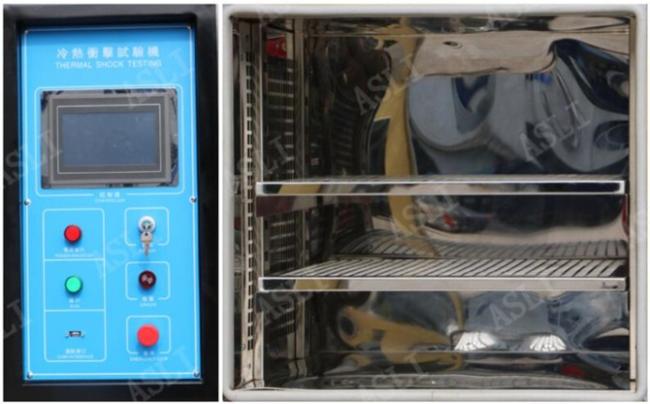

2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
We main production: climatic chamber, temperature chamber, humidity chamber, walk in chamber, UV aging chamber, IEC60068-2-78 Laboratory Equipment Thermal Shock Test Chamber Easy to Operate ,xenon chamber, xenon combined uv aging chamber, PCT chamber, HAST chamber, Vibration chamber, electrodynamic shaker, mechanical shock tester, climatic combined vibration chamber etc.
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
