Cyclic Simulate NASS Salt Spray Test Chamber with 1.0~6.0 kgf Air Pressure
|
Name
|
Simulate NASS Salt Spray Test Chamber
|
||
|
Model
|
SH-120
|
SH-160
|
SH-200
|
|
Internal Dimension WxHxD (mm)
|
1200x500x800
|
1600x500x800
|
2000x500x800
|
|
External Dimension WxHxD (mm)
|
1900x1300x1400
|
2300x1300x1400
|
2700x1500x1500
|
|
Lab Temperature
|
Saline test (NSS ACSS) 35±1 ℃ ;Corrosion Test (CASS)50±1 ℃
|
||
|
Pressure Bucket Temperature
|
Saline test method (NSS ACSS) 47±1 ℃ / Corrosion Test (CASS)63±1 ℃
|
||
|
Lab Capacity(L)
|
480
|
640
|
800
|
|
Saline Capacity(L)
|
40
|
40
|
40
|
|
Compressed Air Pressure(Kgf)
|
1.0~6.0
|
||

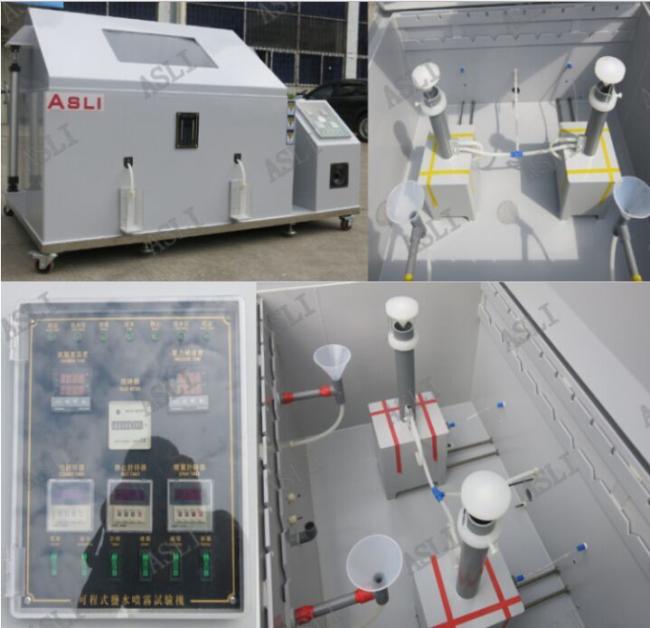

Cyclic Simulate NASS Salt Spray Test Chamber with 1.0~6.0 kgf Air Pressure Features
1. The chamber body is made of the German PVC corrosion resisting materials. With different size of the test bars and test tanks in the chamber.

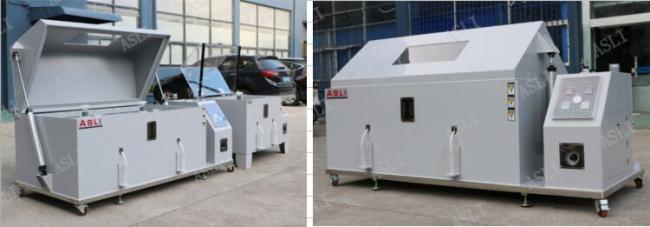

2. The cover of the chamber is used by the transparent materials. It is clear for you to the state of the spraying and test objects in the chamber.
3. The cover and the body of the combined type salt spray tester uses water hermetically-sealed construction,with no salt fog overflow.

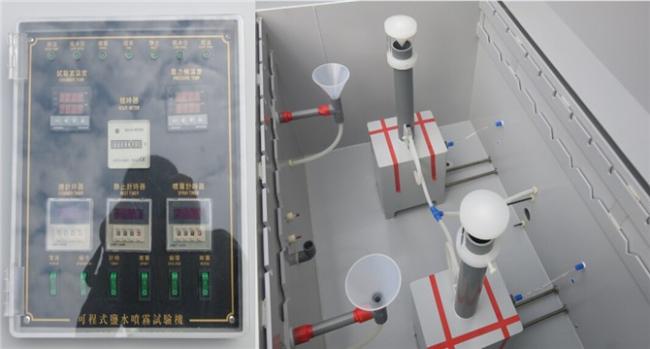

4. Tower type mist spray system and strainer with salt liquid; fog spot go through spraying tower and spraying nozzle etc. available to adjust to salt fog settlement,with uniformity of the mist spray,excellent performance of working chamber.
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Cyclic Simulate NASS Salt Spray Test Chamber with 1.0~6.0 kgf Air Pressureis our star products , and we had obtained the CE certification for this machine .
