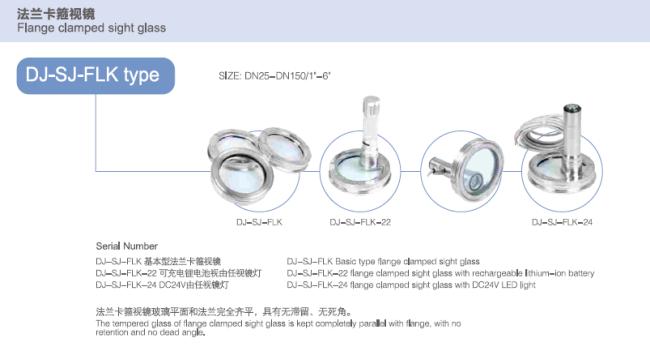

2017 Type Clamp Flange Stainless Steel Sight Glass With Light
2017 Type clamp flange sight glass/ Stainless steel sight glass with light
Brief Description
Aseptic Sight Glass of no dead conner
Size: 1"-12"/DN25-DN300
Gasket: EPDM,PTFE
Protective sleeve: AISI 304
Glass: tempered glass
Detailed Specification
|
Product Name: |
2017 Type clamp flange sight glass/ Stainless steel sight glass with light |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM,PTFE,SILICON,etc |
|
Sight glass: |
tempered glass |
|
Max.temperature: |
-10 to 120 degree (silicon) |
|
Working pressure |
Vacuum -10 bar |
|
Battery: |
use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting. |
|
Available connection: |
Clamp, Thread, weld, Flange |
|
Available standard: |
DIN, SMS, 3A, ISO |
|
Certification: |
3A, PED, FDA, ISO |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Combination: |
Stainless steel and tempered glass |
|
Design: |
New type |
Application
Aseptic no dead angle tubular sight-glass is comprised of stainless steel frame and glass.
Through it, operator canobserve the flowing of the liquid substance clearly and precisely
in the fields of flood,cosmetic, pharmaceutical and fine chemicals industries.
Characteristics
Clamp union ty[e
360° full angle for observation
Could be installed with light and wipper.
Parts contact with liquid : ASME 316L/304

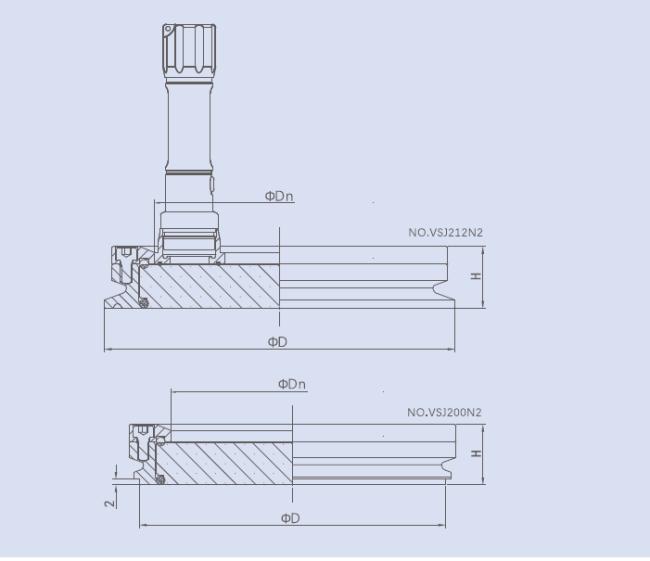

Drawing

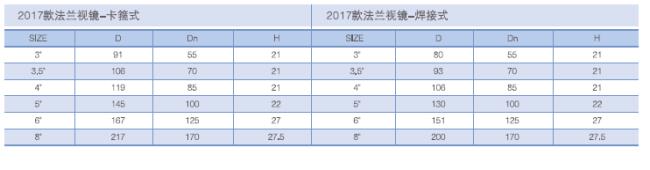

Please check the form below for detailed specification.
