SLX40 -1 316L centrifugal pump , open impeller pump for biological pharmacy
DJ-SLX-40 - 1 316L centrifugal pump , open impeller pump for biological pharmacy
Specification
|
Product Name: |
Centrifugal Pump |
| Model: | KS40-1 |
|
Pump Body Material: |
SS304 / SS316L / 1.4301 / 1.4404 |
|
Seal Material: |
EPDM (Standard, FDA approval) FPM(Viton) and NBR |
|
Max. Flow: |
150 m3/h |
|
Max. Speed: |
3600 min-1, 2900min-1 |
|
Max. Head: |
70H(m) |
|
Max. Working Pressure: |
7 bar/99 PSI |
|
Max. Working Temperature: |
120 °C |
|
Mechanical seal: |
SIC / SiC / EPDM (Standard), C / SIC, TC / TC |
|
Motor power: |
1.1kw, 1.5kw, 2.2kw, 4.0kw-18.5kw |
|
Voltage: |
110V, 220V, 380V |
|
Motor: |
ABB / domestic |
|
Motor Frequency: |
50HZ, 60HZ |
|
Availably connection: |
Tri-Clamp, Thread, Flange |
|
Operation: |
Electric |
|
Certification: |
3A, EC, FDA, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, beer etc |
| Motor selection: | According to actual situation |
| Structure: | Trolley is optional |
Description
Options
1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM, Single/Double Seal
2. Gasket: viton/NBR

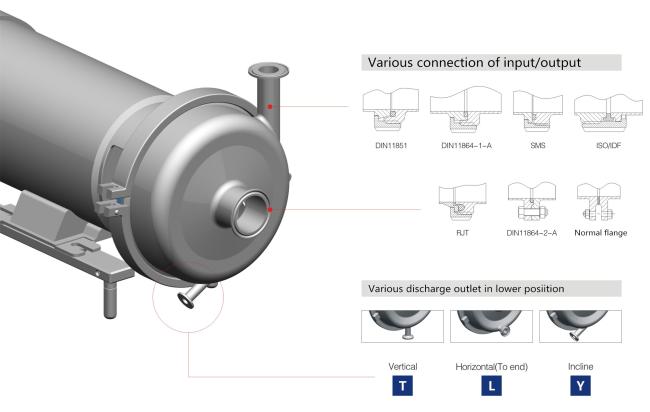

3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)
4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ
Applications
1. This pump is a whole including the motor and pump are made of stainless steel, not only high clean exterior and interior design, also online high-pressure water rinse (IP67 up to IP69 rating).
2.This pump have a high discharge,low noise, igh flow, no dead-ends. high-performance and other technical characteristics. Mother and manufacture high purity materials. Compliance with ASME BPE and EHEDG high Standards. Certified 3A-02-10,CE-MD/06/42/EC.
3.In pieces the pump is very suitable for workplace clean workshop and high clean requirements, such as biological pharmacy, food and beverage, wine,fine chemical industry and other fields.
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
