Stainless steel 316L Multiport Phamacy Sanitary Diaphragm Valves with hand wheel of BPE standard
Stainless steel 316L Multiport Phamacy Sanitary Diaphragm Valves with hand wheel of BPE standard
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner / Process Controller (IL-TOP)
2. Diaphragm valve with Control Unit (C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging
Specifications
|
Product Name: |
Multiport phamacy hygienic Diaphragm Valves |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces |
|
Max Working Pressure: |
8 Bar |
|
Max.Working Temperature: |
150 degree C |
|
Available size: |
1/4”-3/4”, DN6-DN15 |
|
Available connection: |
Clamp/weld/thread/special connection |
|
Available standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Available structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Suitable scope: |
For processing dairy,food, beverage, pharmacy etc |
|
Valve body craft: |
Casting or Forging |
|
Position Sensor: |
Optional |
|
Packaging Details: |
Bubble pack for each valve. Outside packing are carton or |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.

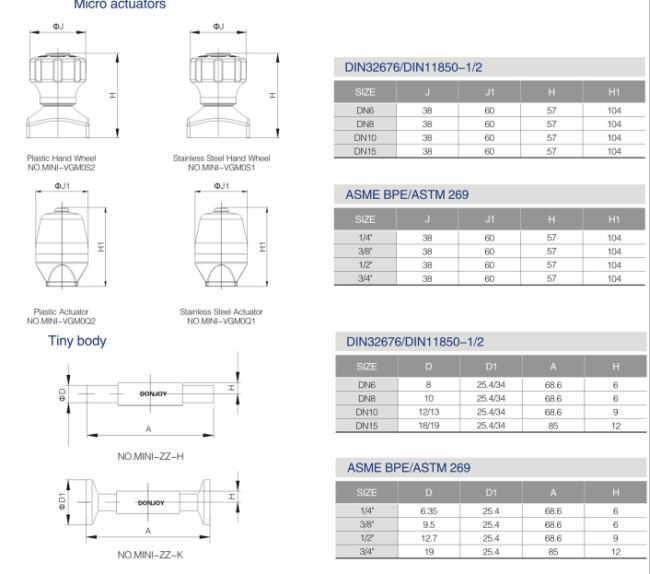

Product drawing

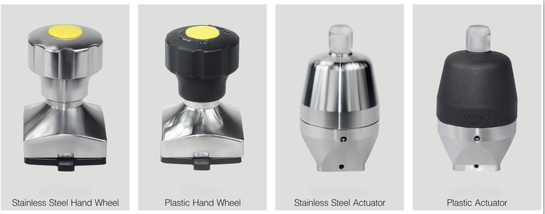

Product actuator

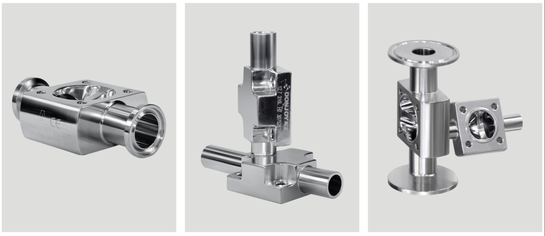

Product body
