Quality DN150 Stainless Steel Union Sight Glass with the dust wiper

Price Negotiable

Price: Negotiable

MOQ: Negotiation

Delivery Time: Negotiable

Brand: DONJOY

Product Description

Quality DN150 Stainless Steel Union Sight Glass with the dust wiper

Quick Detail

DN150 union Sight Glass

Size:DN25-DN150, 1"-6"

Type: Union Type

Gasket: EPDM,PTFE

Working Pressure:vacuum 10Bar

Material: 304(1.4301), 316L(1.4404)

Specification

Product Name:	Quality DN150 Stainless Steel Union Sight Glass with the dust wiper
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,PTFE,SILICON,etc
Sight glass:	tempered glass
Max.temperature:	-10 to 80 degree
Available connection:	Clamp, Thread, weld, Flange
Available standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Operation mode:	Charging mode

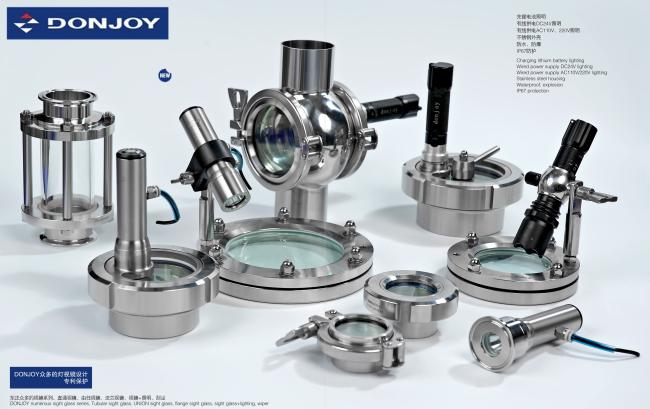

Structure:	union sight glass + lighter + wiper

Application

Union-type-sight-glass DIN11851/SMS (Standard fir dairy products), with transparent

circular glass. Threaded nozzle with the welded neck.It is used viewing the biologic reactor, blender in laboratary, filter, processing container, pipeline and other closed container.

Especially apply in pharmacy, food and beverage processing, such as the brewery, dairy.

Technical Features

One charge can be used for 2-3 months( depending on frequency of use)

Waterproof, explosion-proof, hygienic design

Various Type
