Food Grade 360 Degree 1" Clamped Fixed Tank Spray Balls For Beverage Transport Equipment
Food Grade 360 Degree Fixed Tank Spray Balls For Beverage Transport Equipment
Quick Detail
Cleaning Ball
Type: 360 Degree, 180 Degree, 270 Degree
Size:1"-2.5"
Connection: Thread, Welded, Clamped, Bolted
Specification
Product Name: |
Fixed Cleaning Ball, Clean Head, Pin Connection, 360Degree spray |
| Material: | SUS304/316L;PTFE |
| Flow: | 4-45m³/h |
| Inlet Pressure: | 4-10 bar |
| Suggest Pressure: | 6 bar |
| Availably size: | 1"-2.5" |
| Connection way: | thread BSP,clamp Pin, Welded |
| Max temperature: | 95°C |
| Max environment temperature: | 140°C |
| Application Scope: | Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage |
| Typical application: | process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding |
| Advantages: | Self-cleaning; low liquid consumption; heath design |
| Typical cleaning methods: | fixed installation CIP system |
| Packaging Details: | Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers. |
Typical Application
1. Fixedinstallaiton CIP System
2. Process Containers and reator
3. Store tank
4. Transport tank equipment
5. Fermentation
6. Yeast Breeding

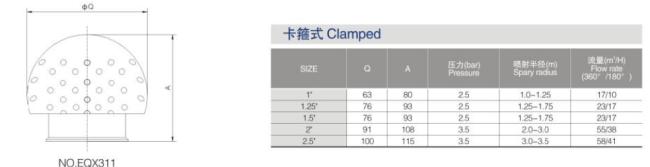

Clamped Fixed Tank cleaning Ball Selection Table
| Size | Q | A | Pressure(Bar) | Spray Radius(m) | Flow Rate |
| 1” |
63
|
80 | 2.5 | 1.0-1.25 | 17/10 |
| 1.25” | 76 | 93 | 2.5 | 1.25-1.75 | 23/17 |
| 1.5” | 76 | 93 | 2.5 | 1.25-1.75 | 23/17 |
| 2” | 91 | 108 | 3.5 | 2.0-3.0 | 55/38 |
| 2.5” | 100 | 115 | 3.5 | 3.0-3.5 | 58/41 |
Application: For the beverage, food and chemecial Tank Cleaning
