Pharmaceutical industry DIN SS316L union sight glass for filter tube
Pharmaceutical industry DIN SS316L union sight glass for filter tube
Brief Instruction
Sight Glass
Size:DN65-DN150,3"-6"
Type: DC24V,NO.5 Battery
Gasket: EPDM,PTFE
Working Pressure:10Bar
Specification
|
Product Name: |
DIN SS316L union sight glass with stainless steel lighter suitable for filter tube in pharmaceutical industry |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
O ring: |
EPDM FPM |
|
Material connecting with other part: |
1.4301(304); 1.4404(316L) |
|
Sight glass: |
tempered glass |
|
Max.temperature: |
120 degree |
|
Battery: |
use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting. |
|
Availably connection: |
Clamp, Thread, weld, Flange |
|
Availably standard: |
DIN, SMS, 3A, ISO |
|
Certification: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
Suitable industry
A tubular sight-glass is comprised of stainless steel frame and glass.
Through it, operator canobserve the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industries
Advantaged design
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position
Call with light and wipper.

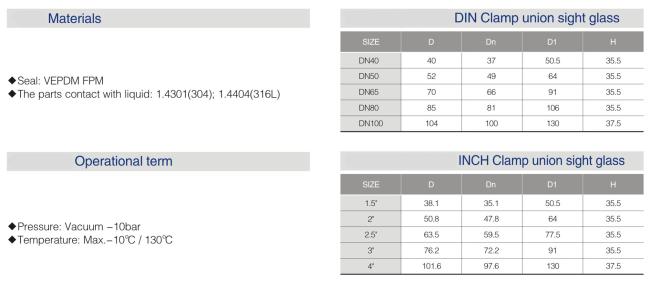

Size and details
Various Selection of Union Sighlt glass

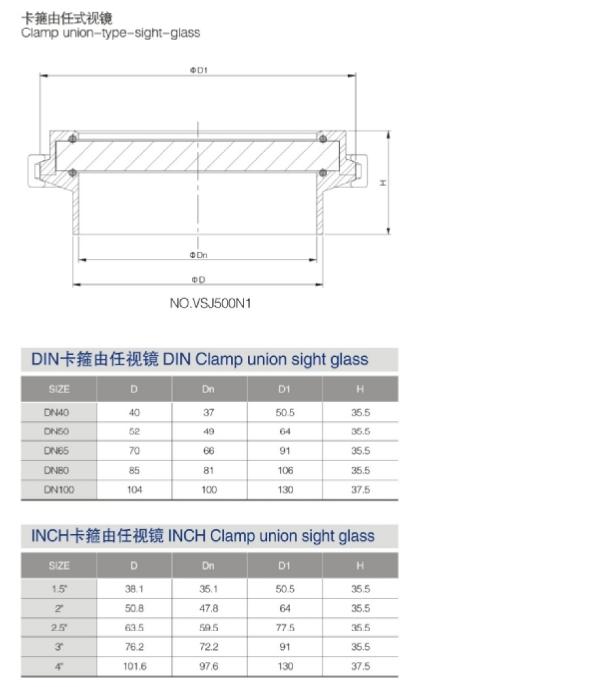

Drawing
